Components [10/2018 - 07/2022]

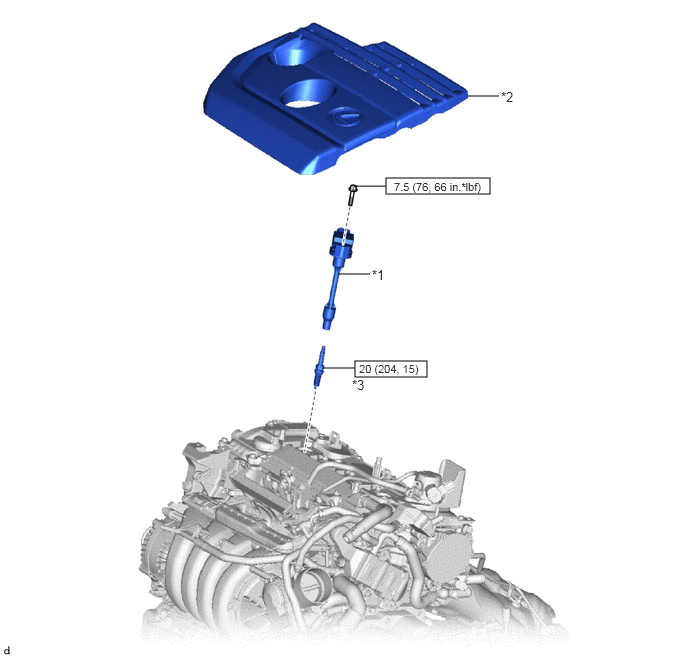

Fig 1: Spark Plug (M20A-FKS) Replacement Components Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	IGNITION COIL ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	SPARK PLUG	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
