Removal [10/2018 - 07/2022]: Procedure

Refer to REMOVAL [10/2018 - 07/2022]

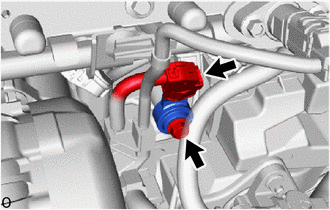

1. Disconnect the knock sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and knock sensor from the cylinder block sub-assembly.
   NOTE:

   If the knock sensor has been struck or dropped, replace it.
