Components [10/2018 - 07/2022]

Fig 1: Throttle Body Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

REAR ENGINE UNDER COVER LH

-

-

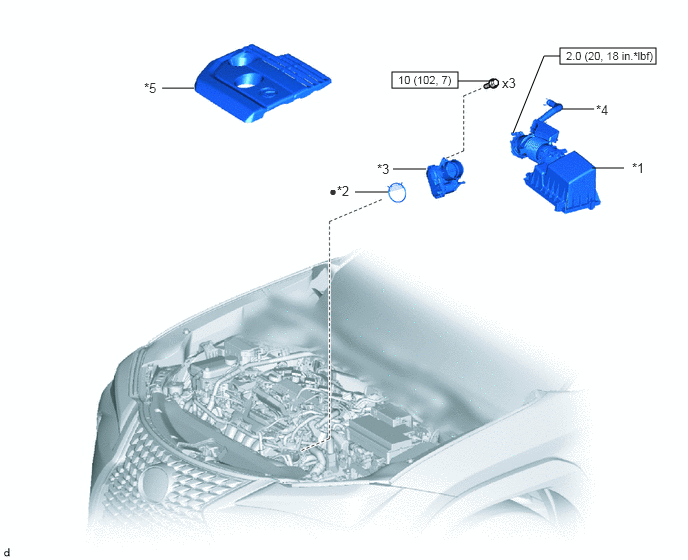

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	THROTTLE BODY GASKET
*3	THROTTLE BODY WITH MOTOR ASSEMBLY	*4	NO. 2 VENTILATION HOSE
*5	NO. 1 ENGINE COVER SUB-ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
