Removal [07/2022 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to INITIALIZATION [07/2022 - ]

  2. DISABLE BRAKE CONTROL

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT WHEEL

    Refer to REMOVAL [10/2018 - ]

  4. REMOVE FRONT DISC BRAKE PAD
    WARNING:
    • Be careful not to get pinched by the front disc brake cylinder assembly or other parts when removing the front disc brake pads.
    • After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.
      GTY773838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

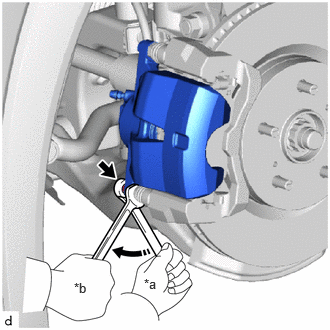

    1. Hold the front disc brake cylinder slide pin (lower side) and remove the bolt.
      GTY827540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
      NOTE:

      Do not kink or damage the brake line.

    2. Pull the front disc brake cylinder assembly upward.

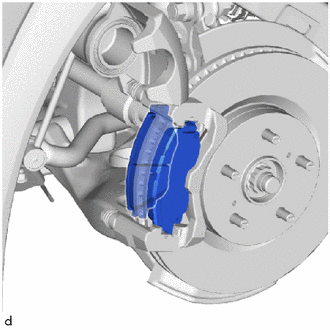

    3. Remove the 2 front disc brake pads from the front disc brake cylinder mounting.
      GTY813343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT
    1. Remove the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim from each front disc brake pad.
    2. Using a screwdriver, remove the front disc brake pad wear indicator plate from each front disc brake pad.
      GTY754746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
