Components [10/2018 - ]

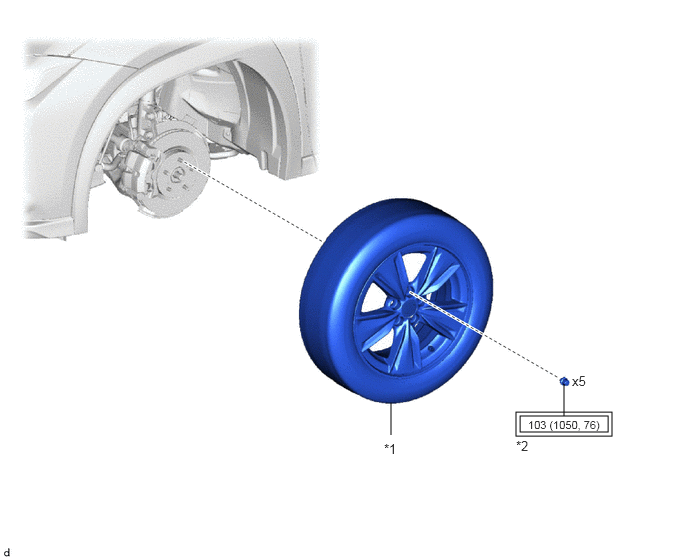

Fig 1: Tire And Wheel Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	WHEEL ASSEMBLY	*2	AXLE HUB NUT
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
