Installation [07/2022 - ]: Procedure

INSTALL NO. 1 INTEGRATION RELAY

Connect the 2 connectors.

Engage the claws to install the No. 1 integration relay.

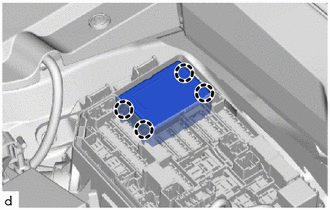

GTY817439

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 1 RELAY BLOCK COVER

Engage the claws to install the No. 1 relay block cover.

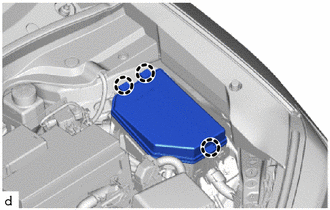

GTY817442

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [10/2018 - ]

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [07/2022 - ]
