Components [10/2018 - ]

Fig 1: Throttle Body Replacement Components (1 Of 2)
GTY785842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR ENGINE UNDER COVER LH - -

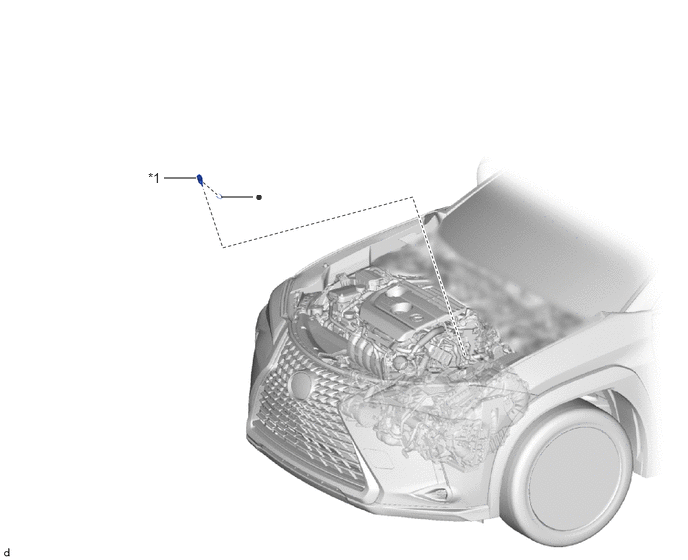

Fig 2: Engine Coolant Temperature Sensor Replacement Components (2 Of 2)
GTY780932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE COOLANT TEMPERATURE SENSOR - -
• Non-reusable part - -
