Components [10/2018 - 07/2022]

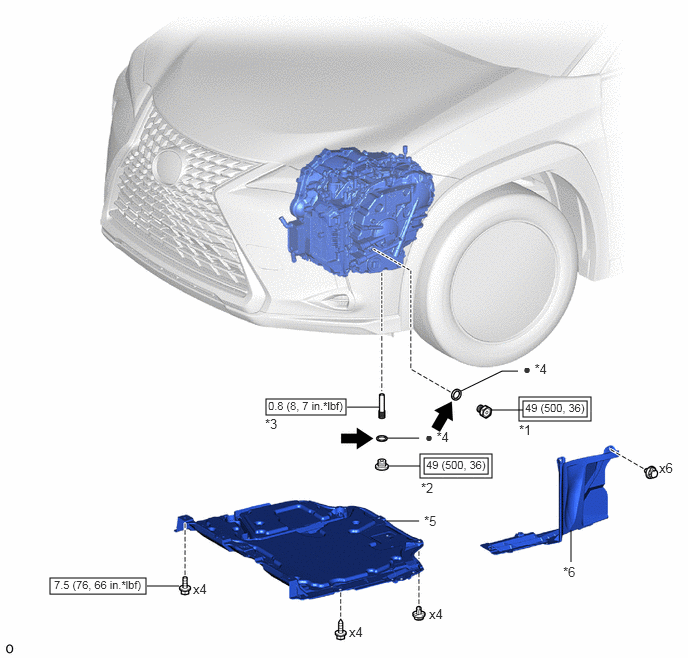

Fig 1: Continuously Variable Transaxle Fluid Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REFILL PLUG	*2	OVERFLOW PLUG
*3	NO. 1 TRANSMISSION OIL FILLER TUBE	*4	GASKET
*5	NO. 1 ENGINE UNDER COVER ASSEMBLY	*6	REAR ENGINE UNDER COVER LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part		Toyota Genuine CVT fluid FE
