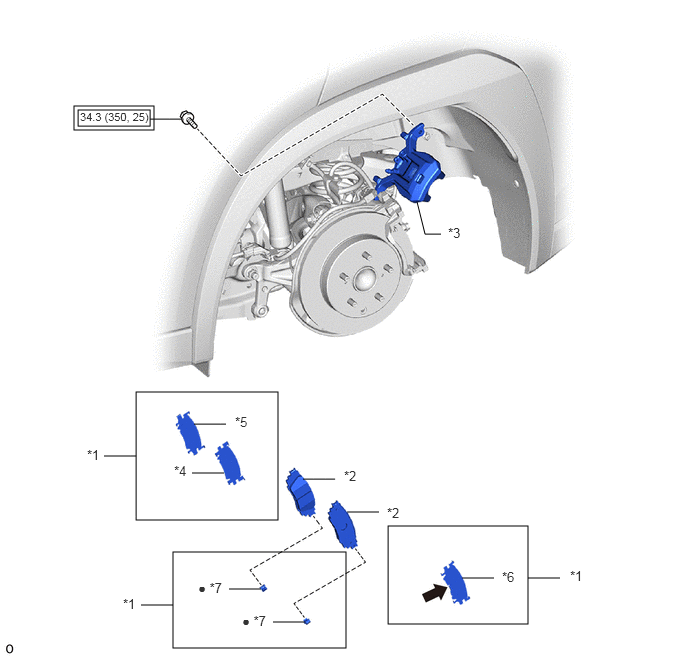

Components [10/2018 - ]
| *1 | REAR DISC BRAKE ANTI-SQUEAL SHIM KIT | *2 | REAR DISC BRAKE PAD |
| *3 | REAR DISC BRAKE CYLINDER ASSEMBLY | *4 | REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM |
| *5 | REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM | *6 | REAR DISC BRAKE ANTI-SQUEAL SHIM |
| *7 | REAR DISC BRAKE PAD WEAR INDICATOR PLATE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Brake Shim Grease (Part No. 08887-80409) | - | - |
