FixVault
Home
›
Lexus
›
2021
›
UX 250h Base
›
Repair and Diagnosis
›
Suspension
›
Suspension Control Systems
›
Suspension Control System (Service Information)
›
Front Acceleration Sensor
›
Components [07/2022 - ]
Components [07/2022 - ]

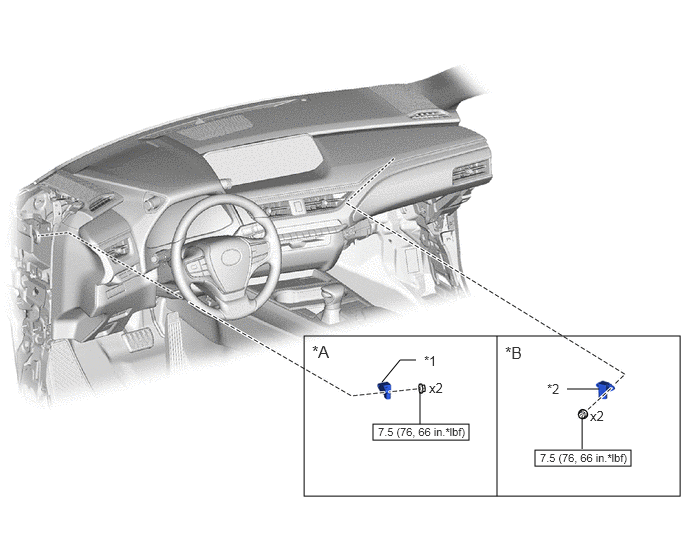

Fig 1: Front Acceleration Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for Driver Side
*B
for Front Passenger Side
*1
ACCELERATION SENSOR ASSEMBLY LH
*2
ACCELERATION SENSOR ASSEMBLY RH
N.m (kgf/cm, ft.lbf): Specified torque
-
-
