Engine Control System (A25A-FKS) - Service Information
›
Camshaft Position Sensor
›
Components [08/2021 - ]
Components [08/2021 - ]

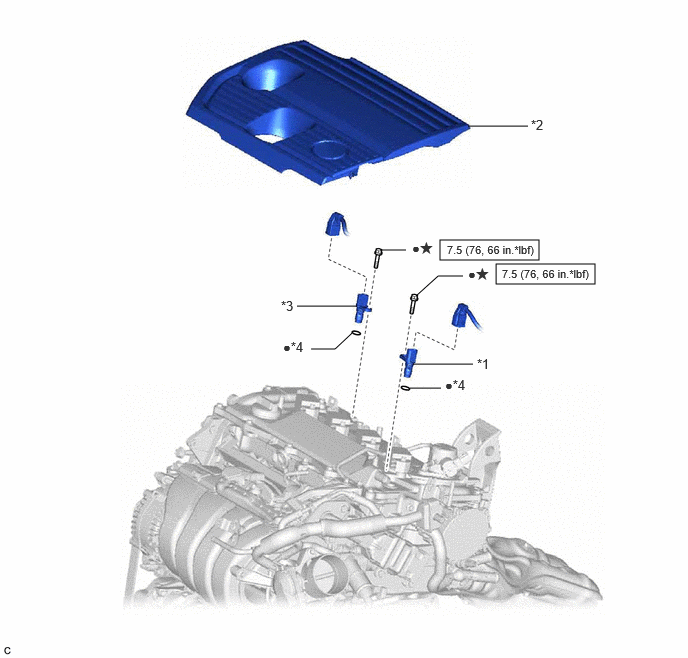

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications [08/2021 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CAMSHAFT POSITION SENSOR (for Intake Side)
*2
NO. 1 ENGINE COVER SUB-ASSEMBLY
*3
CAMSHAFT POSITION SENSOR (for Exhaust Side)
*4
O-RING
N.m (kgf/cm, ft.lbf): Specified torque
•
Non-reusable part
*
Precoated part
-
-
