Components [11/2021 - ]

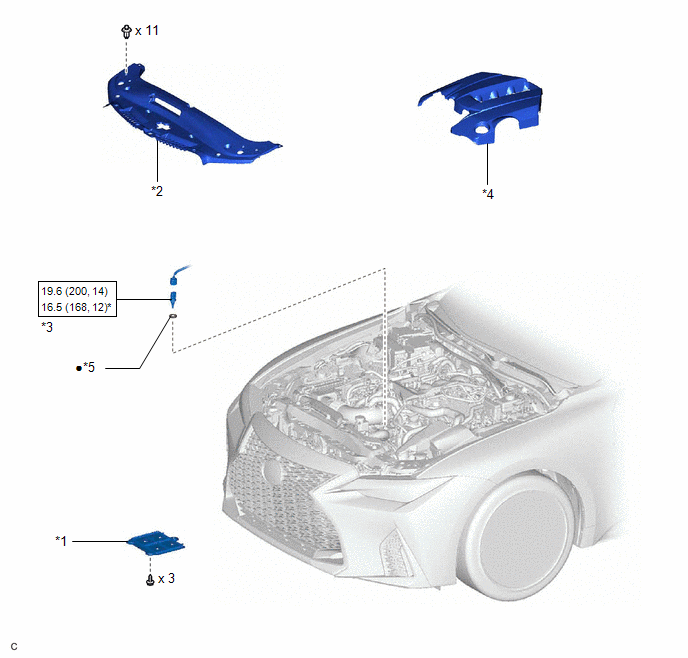

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY1084194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER NO. 4 ENGINE UNDER COVER *2 COOL AIR INTAKE DUCT SEAL
*3 ENGINE COOLANT TEMPERATURE SENSOR *4 V-BANK COVER SUB-ASSEMBLY
*5 GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with a union nut wrench
• Non-reusable part - -
