Installation [12/2021 - ]: Procedure

  1. INSTALL ECO RUN VEHICLE CONVERTER ASSEMBLY

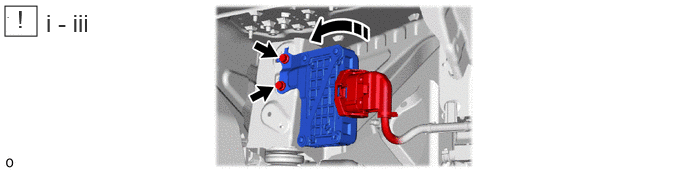

    1. GTY1074045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the eco run vehicle converter assembly connector and move the lock lever as shown in the illustration to lock the connector.
      2. Temporarily install the eco run vehicle converter assembly.
      3. Tighten the eco run vehicle converter assembly with the 2 bolts.
  2. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH
    1. Use the same procedure described for LH side.

      Refer to INSTALLATION [12/2021 - ]
