Removal [11/2021 - ]: Procedure

  1. REMOVE ENGINE OIL TEMPERATURE SENSOR

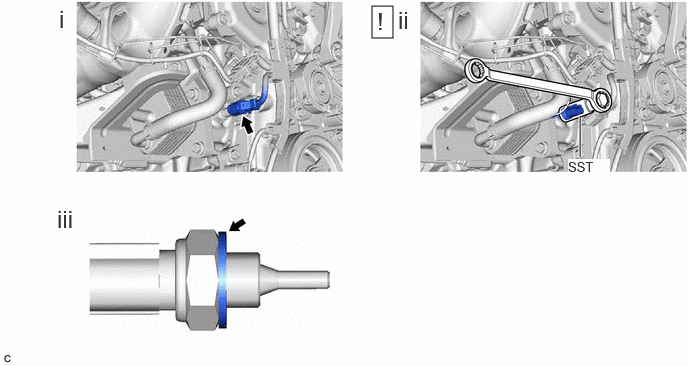

    1. GTY1076564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the engine oil temperature sensor connector.
      2. Using SST, remove the engine oil temperature sensor from the cylinder block sub-assembly.
        • SST: 09817-33191
        NOTE:

        If the engine oil temperature sensor has been struck or dropped, replace it.

      3. Remove the gasket from the engine oil temperature sensor.
