FixVault
Home
›
Lexus
›
2023
›
GX 460 Base
›
Repair and Diagnosis
›
Suspension
›
Suspension Control Systems
›
Suspension Control System (Service Information)
›
Height Control Compressor
›
Components [08/2015 - ]
Components [08/2015 - ]

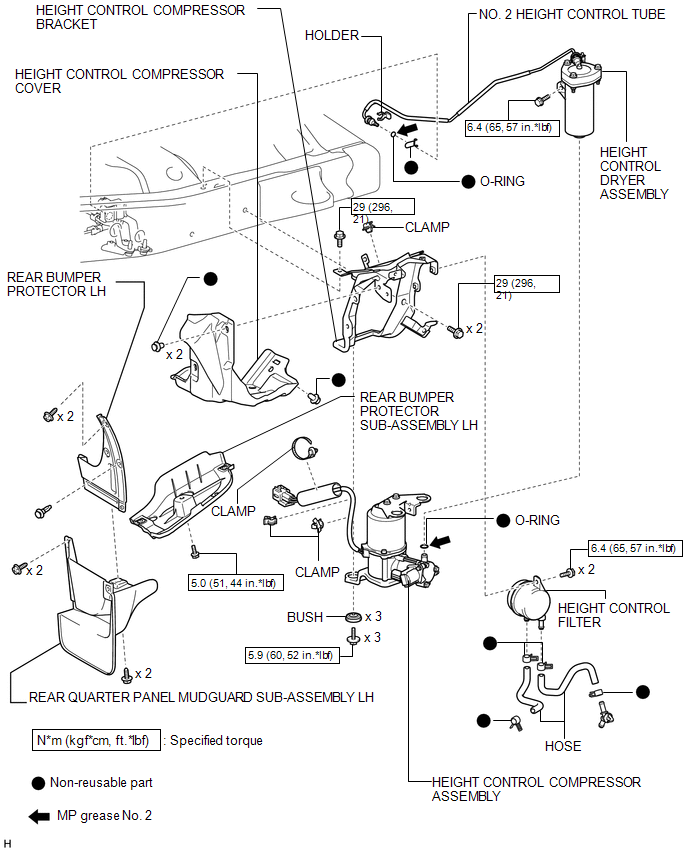

Fig 1: Height Control Compressor Replacement Components With Torque Specifications [08/2015 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
