Components [11/2021 - ]

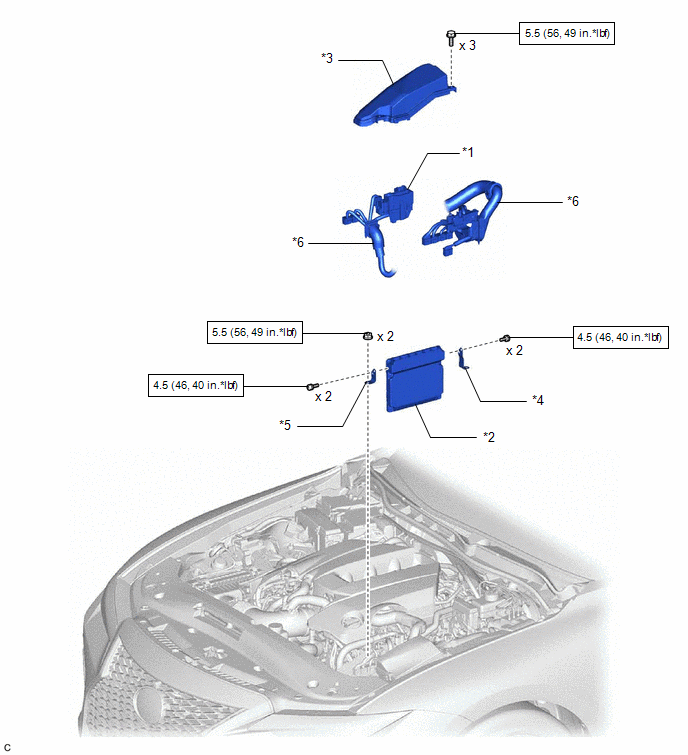

Fig 1: ECM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONNECTOR HOLDER	*2	ECM
*3	ENGINE ROOM ECU COVER	*4	NO. 1 ECM BRACKET
*5	NO. 2 ECM BRACKET	*6	WIRE HARNESS
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
