Installation [12/2021 - ]: Procedure

  1. INSTALL SEMICONDUCTOR POWER INTEGRATION ECU

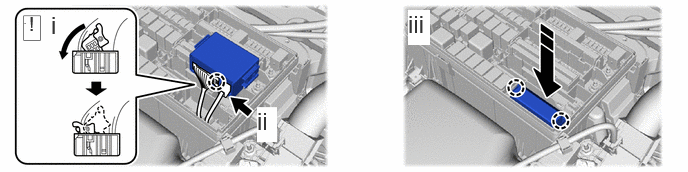

    1. GTY1072912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
      1. Attach the claw to connect the lever connector.
        NOTE:

        Be sure to connect the lever connector securely.

      2. Connect the connector.
      3. Attach the claw to install the semiconductor power integration ECU as shown in the illustration.
  2. INSTALL NO. 1 RELAY BLOCK COVER
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [12/2021 - ]

  4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [12/2021 - ]
