COMPONENTS (REMOVAL)

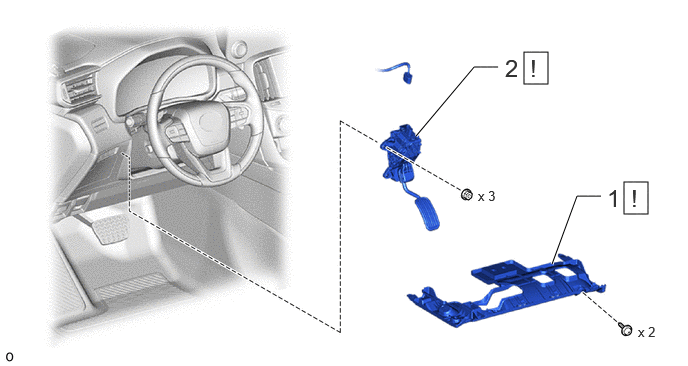

Fig 1: Accelerator Pedal Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	See step 1	-	-
2	ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY	78110K	See step 2	-	-
