Caution / Notice / Hint
NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [12/2021 - ]

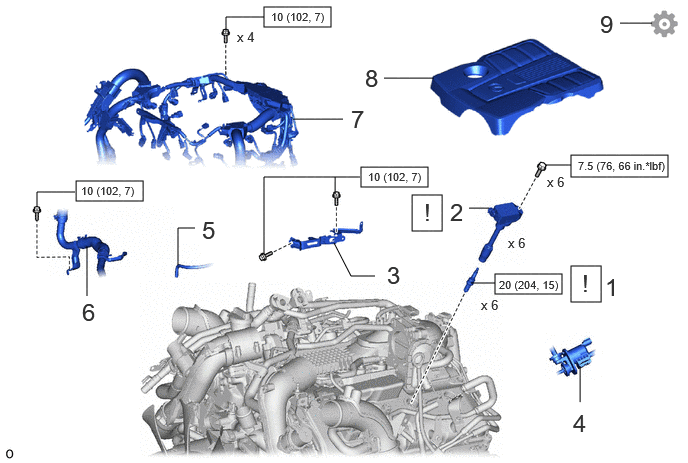

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | SPARK PLUG | 19100P | See step 1 | - | - |
| 2 | IGNITION COIL ASSEMBLY | 19500 | See step 2 | - | - |
| 3 | BRACKET | - | - | - | - |
| 4 | PURGE VSV (DUTY VACUUM SWITCHING VALVE) | 17650G | - | - | - |
| 5 | NO. 1 VENTILATION PRESSURE SENSOR HOSE | 12266B | - | - | - |
| 6 | NO. 4 WATER BY-PASS PIPE | 16288 | - | - | - |
| 7 | ENGINE WIRE | 82121 | - | - | - |
| 8 | V-BANK COVER SUB-ASSEMBLY | 11209 | - | - | - |
| 9 | PERFORM INITIALIZATION | - | - | - | See step 9 |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
