Removal [11/2021 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 23 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 23 [03/2024 - ]

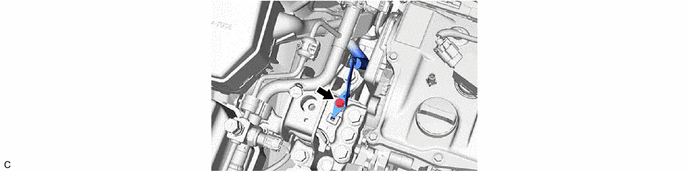

  2. DISCONNECT NO. 2 EARTH WIRE
    1. GTY1076497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 ENGINE COVER

    Refer to PROCEDURE - Step 2 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 2 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 2 [03/2024 - ]

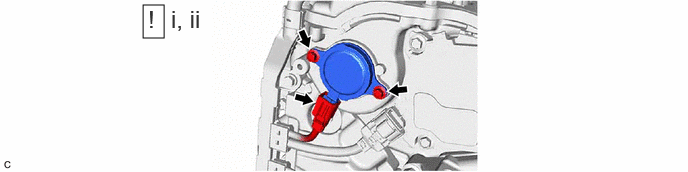

  4. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
    1. GTY1076454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the cam timing oil control solenoid assembly connector.
      2. Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.
        NOTE:

        If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

  5. REMOVE CAM TIMING OIL CONTROL SOLENOID O-RING
    HINT:
    Perform this procedure only when replacement of the cam timing oil control solenoid O-ring is necessary.
    1. GTY1075683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the cam timing oil control solenoid O-ring from the cam timing oil control solenoid assembly.
        NOTE:
        • When removing the cam timing oil control solenoid O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
        • If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
