Removal [11/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

    Refer to PROCEDURE - Step 8 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 8 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 8 [03/2024 - ]

  4. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    Refer to PROCEDURE - Step 9 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 9 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 9 [03/2024 - ]

  5. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 10 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 10 [03/2024 - ]

  6. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 11 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 11 [03/2024 - ]

  7. DRAIN COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 4

  8. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 4

  9. REMOVE RADIATOR UPPER AIR GUIDE PLATE

    Refer to PROCEDURE - Step 1 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 1 [03/2024 - ]

  10. REMOVE INLET AIR CLEANER ASSEMBLY

    See step  4

  11. REMOVE AIR CLEANER ASSEMBLY

    See step  5

  12. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

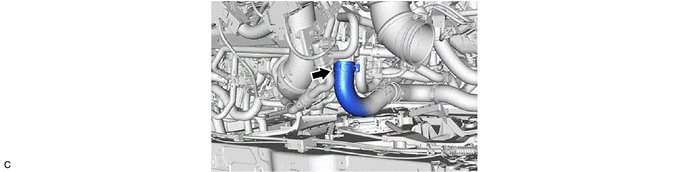

  13. DISCONNECT NO. 1 RADIATOR HOSE
    1. GTY1076154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

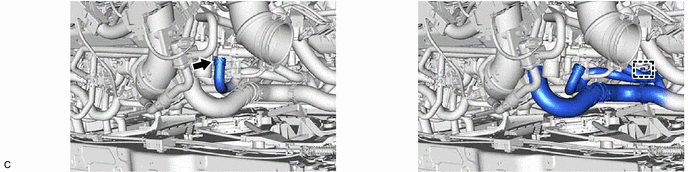

  14. DISCONNECT WATER BY-PASS HOSE ASSEMBLY
    1. GTY1076156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

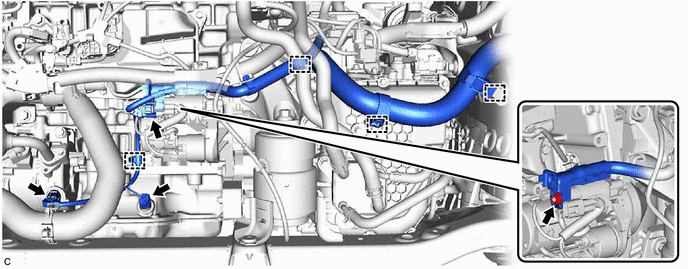

  15. DISCONNECT WIRE HARNESS
    1. GTY1076152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

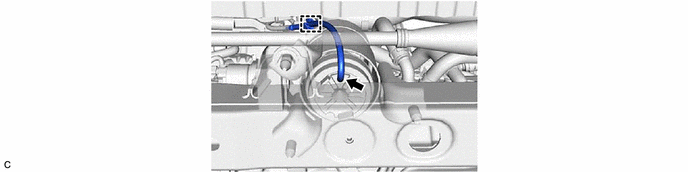

  16. DISCONNECT VACUUM HOSE
    1. GTY1076147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

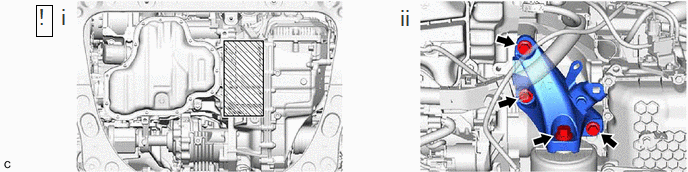

  17. REMOVE FRONT ENGINE MOUNTING BRACKET
    1. GTY1076224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Wooden Block Placement Location - -
      1. Support the engine assembly with transaxle using a jack and wooden block.
      2. Remove the 4 bolts and front engine mounting bracket.

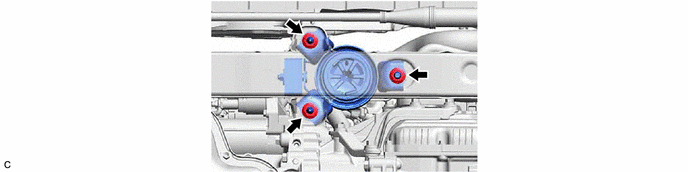

  18. REMOVE FRONT ENGINE MOUNTING INSULATOR
    1. GTY1076143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
