Removal [03/2023 - ]: Procedure

  1. REMOVE FRONT FENDER PANEL CUSHION LH

    Refer to PROCEDURE - Step 2

  2. REMOVE FRONT FENDER PANEL CUSHION RH
    1. Perform the same procedure as for the LH side.
  3. REMOVE HOOD TO FRONT FENDER SEAL LH

    Refer to PROCEDURE - Step 3

  4. REMOVE HOOD TO FRONT FENDER SEAL RH
    1. Perform the same procedure as for the LH side.
  5. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  6. REMOVE COWL VENTILATOR SPLASH SHIELD LH

    Refer to PROCEDURE - Step 7 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 7 [03/2024 - ]

  7. REMOVE COWL VENTILATOR PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 8 [03/2024 - ]

  8. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 25 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 25 [03/2024 - ]
  9. REMOVE NO. 3 ENGINE COVER

    Refer to PROCEDURE - Step 26 [03/2023 - 03/2024] , or refer to PROCEDURE - Step 26 [03/2024 - ]

  10. REMOVE AIR FUEL RATIO SENSOR

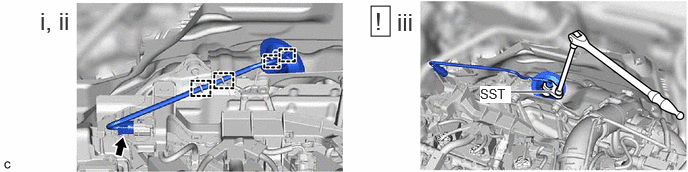

    1. GTY1077008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 4 wire harness clamps.
      2. Disconnect the air fuel ratio sensor connector.
      3. Using SST, remove the air fuel ratio sensor from the converter with catalyst assembly.
        • SST: 09224-00012
        NOTE:

        If the air fuel ratio sensor has been struck or dropped, replace it.
