Removal [03/2024 - ]: Procedure

  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [03/2024 - ]

  2. REMOVE AIR FUEL RATIO SENSOR

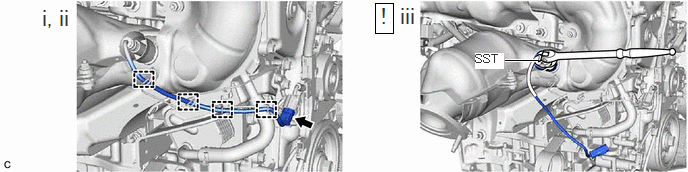

    1. GTY1076523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 4 wire harness clamps.
      2. Disconnect the air fuel ratio sensor connector.
      3. Using SST, remove the air fuel ratio sensor from the converter with catalyst assembly.
        • SST: 09224-00012
        NOTE:

        If the air fuel ratio sensor has been struck or dropped, replace it.
