Removal [08/2023 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
  2. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY (for PHEV Model)

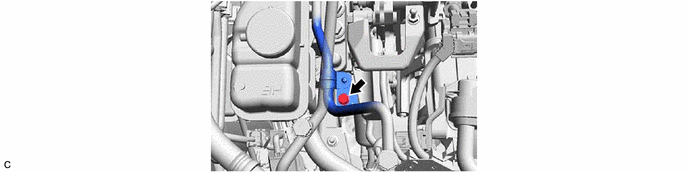

    1. GTY1203584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE EARTH BOLT CAP

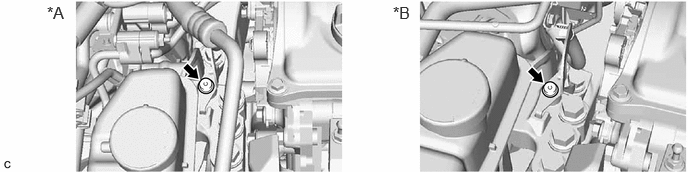

    1. GTY1206156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for PHEV Model *B for HEV Model
  4. DISCONNECT NO. 2 EARTH WIRE

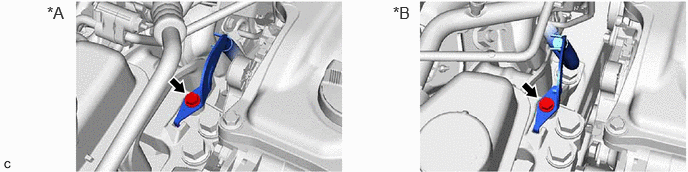

    1. GTY1205513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for PHEV Model *B for HEV Model
  5. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

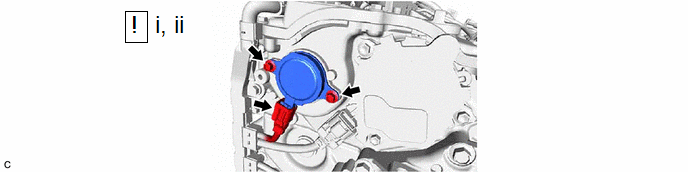

    1. GTY1077251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the cam timing oil control solenoid assembly connector.
      2. Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.
        NOTE:

        If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

  6. REMOVE CAM TIMING OIL CONTROL SOLENOID O-RING
    HINT:
    Perform this procedure only when replacement of the cam timing oil control solenoid O-ring is necessary.
    1. GTY1075683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the cam timing oil control solenoid O-ring from the cam timing oil control solenoid assembly.
        NOTE:
        • When removing the cam timing oil control solenoid O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
        • If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
