Removal [10/2022 - ]: Procedure

REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to REMOVAL [10/2022 - ]
REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 3 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - ]

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

for 1Motor-HEV Model:
Refer to PROCEDURE - Step 22
for Gasoline Model:
Refer to PROCEDURE - Step 26

REMOVE NO. 3 ENGINE COVER
- for 1Motor-HEV Model:
  Refer to PROCEDURE - Step 23
- for Gasoline Model:
  Refer to PROCEDURE - Step 27

REMOVE AIR FUEL RATIO SENSOR

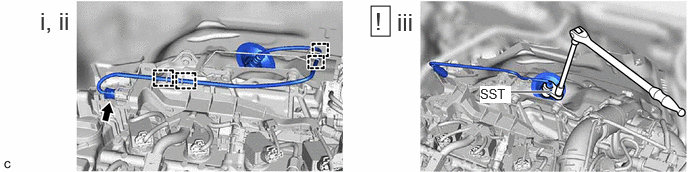

GTY1131928

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 4 wire harness clamps.
Disconnect the air fuel ratio sensor connector.
Using SST, remove the air fuel ratio sensor from the converter with catalyst assembly.
- SST: 09224-00012
NOTE:
If the air fuel ratio sensor has been struck or dropped, replace it.
