Removal [10/2022 - ]: Procedure

  1. DISCONNECT INTERCOOLER RESERVE TANK ASSEMBLY

    Refer to PROCEDURE - Step 75

  2. REMOVE FUEL DELIVERY GUARD

    Refer to PROCEDURE - Step 44

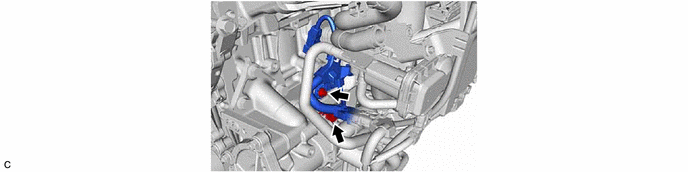

  3. DISCONNECT WIRE HARNESS
    1. GTY1133041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

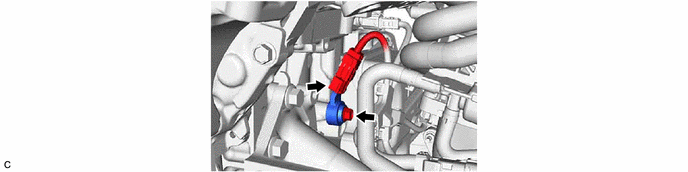

  4. REMOVE KNOCK CONTROL SENSOR
    NOTE:

    If the knock control sensor has been struck or dropped, replace it.
    1. GTY1133042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
