Installation [12/2023 - ]: Procedure

INSTALL FRONT SPEED SENSOR

NOTE:

Keep the tip of the front speed sensor and installation hole free of foreign matter.
Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
Do not twist the front speed sensor wire harness when installing it.

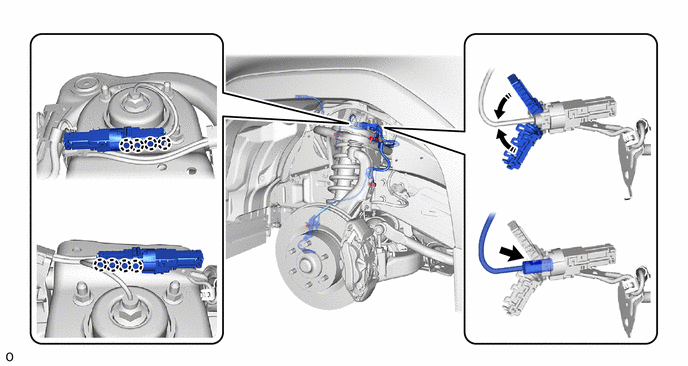

w/ AVS:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for LH Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bolt A

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

Bolt B

Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

for RH Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Electronic-Kinetic Dynamic Suspension System

Bolt A

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

Bolt B

Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

INSTALL AIR CLEANER ASSEMBLY LH WITH AIR CLEANER HOSE ASSEMBLY LH (for LH Side)

Refer to PROCEDURE - Step 2
INSTALL AIR CLEANER ASSEMBLY RH WITH AIR CLEANER HOSE ASSEMBLY RH (for RH Side)

Refer to PROCEDURE - Step 3
INSTALL V-BANK COVER SUB-ASSEMBLY
INSTALL FRONT FENDER APRON TRIM PACKING A (for RH Side with Electronic-Kinetic Dynamic Suspension System)
INSTALL FRONT WHEEL
Refer to INSTALLATION [12/2023 - ]
CHECK FOR SPEED SENSOR SIGNAL
Refer to SIGNAL CHECK [12/2023 - ]
