The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine coolant temperature sensor removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of engine coolant temperature sensor (for Water Inlet Housing Side) Replacement of engine coolant temperature sensor (for Cylinder Head Side) Replacement of Engine coolant temperature sensor (for Outlet Side)	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [11/2021 - ]

NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) battery terminal.

Refer to INSPECTION MODE PROCEDURE [11/2021 - ]

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lighting System (EXT)	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [11/2021 - ]
Front Camera System
Adaptive High Beam System
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted.	Refer to PRECAUTION [11/2021 - 03/2023] , or refer to PRECAUTION [03/2023 - 03/2024] , or refer to PRECAUTION [03/2024 - ]

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
E-latch System Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [11/2021 - ]
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [11/2021 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

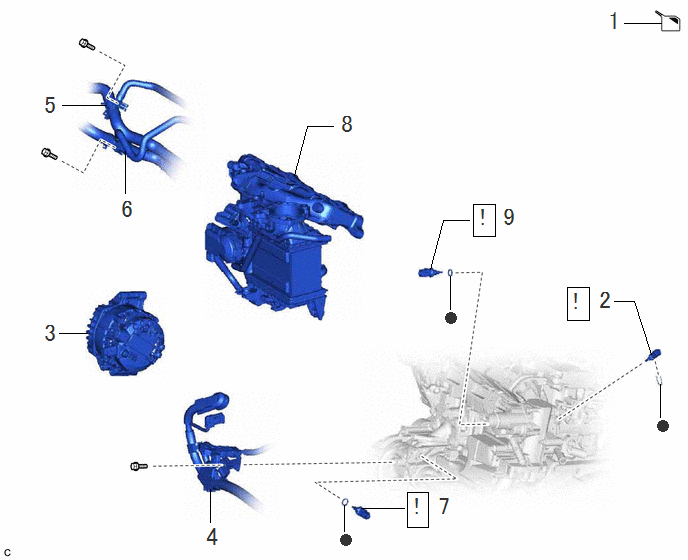

Fig 1: Engine Coolant Temperature Sensor Removal Components

Callout - Procedure		Part Name Code
1	DRAIN ENGINE COOLANT	-	-	See step 1	-
2	ENGINE COOLANT TEMPERATURE SENSOR (for Outlet Side)	89422A	See step 2	-	-
3	GENERATOR ASSEMBLY	27060	-	-	-
4	WIRE HARNESS	-	-	-	-
5	NO. 2 INTERCOOLER COOLING WATER PIPE	16516A	-	-	-
6	NO. 1 INTERCOOLER COOLING WATER PIPE	16515A	-	-	-
7	ENGINE COOLANT TEMPERATURE SENSOR (for Water Inlet Housing Side)	89422	See step 7	-	-
8	INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY	-	-	-	-
9	ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side)	89422	See step 9	-	-

•

Non-reusable part
