Installation [01/2023 - 11/2023]: Procedure
- INSPECT SPIRAL CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL STEERING SENSOR

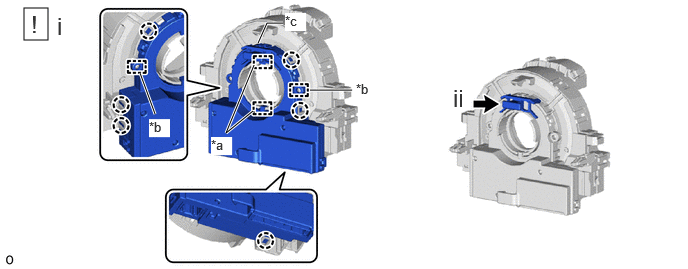

*a Guide *b Pin *c Lock Pin - - - Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.NOTE:
- Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.
- Do not damage the pins of the spiral cable sub-assembly or guides of the steering sensor.
- The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the steering sensor to the spiral cable sub-assembly.
- Remove the lock pin from the steering sensor.
- Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
Refer to PROCEDURE - Step 3
- INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 4 - INSTALL UPPER STEERING COLUMN COVER
- INSTALL LOWER STEERING COLUMN COVER
- ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- INSTALL STEERING WHEEL ASSEMBLY
Refer to PROCEDURE - Step 7 - INSTALL HORN BUTTON ASSEMBLY
Refer to PROCEDURE - Step 1 - CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [01/2023 - ]
- UPDATE ECU SECURITY KEY
Refer to UPDATE ECU SECURITY KEY [01/2023 - ]
HINT:
When the steering sensor is replaced with a new one, ECU security key is necessary.
- INSPECT HORN BUTTON ASSEMBLY
Refer to PROCEDURE - Step 5
- INSPECT SRS WARNING LIGHT
Refer to OPERATION CHECK [01/2023 - ]
- CHECK STEERING WHEEL CENTER POINT
Refer to ADJUSTMENT [01/2023 - ]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to PROCEDURE - Step 16
- INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [01/2023 - ]
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
