Removal [09/2023 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  2. REMOVE INLET AIR CLEANER ASSEMBLY

    See step  4

  3. REMOVE AIR CLEANER ASSEMBLY

    See step  5

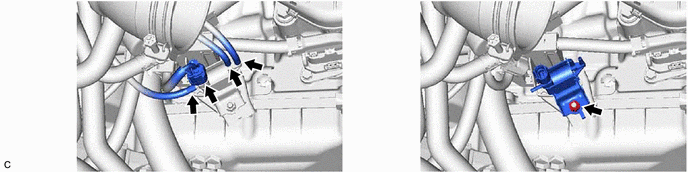

  4. REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (for Active Control Engine Mount System)
    1. GTY1076169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
