Caution / Notice / Hint

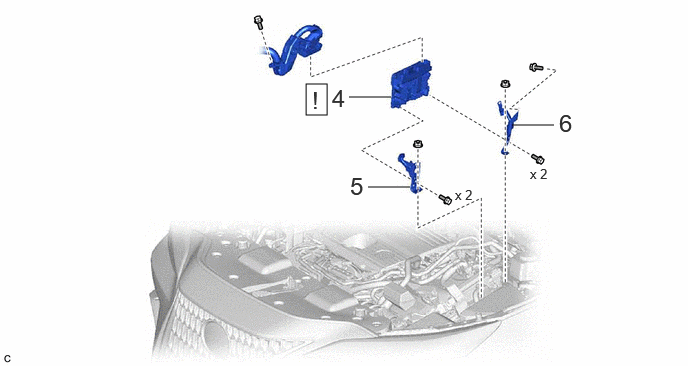

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ECM removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of ECM | Perform Vehicle Identification Number (VIN) registration | DTC is output | Refer to REGISTRATION [11/2021 - ] |
| Update ECU security key | Vehicle Control History (RoB) are stored | Refer to UPDATE ECU SECURITY KEY [11/2021 - ] |
NOTE:

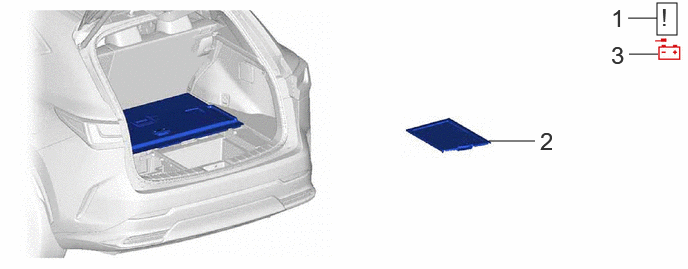

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
LEARNING COMPLETES WHEN VEHICLE IS DRIVEN
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Lighting System (EXT) | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. | Refer to INITIALIZATION [11/2021 - ] |
| Front Camera System | ||
| Adaptive High Beam System |
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
E-latch System
|
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | Refer to INITIALIZATION [11/2021 - ] |
| Power Back Door System | Reset back door close position | Refer to INITIALIZATION [11/2021 - ] |
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
