Removal & Installation: Installation

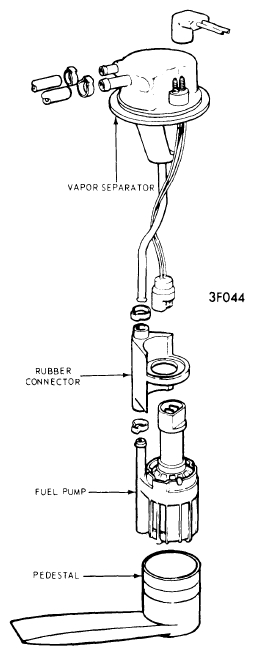

Install pump pedestal on pump and install retaining clamp. Install rubber connector on fuel pump and install retaining clamp, then install rubber connector and fuel pump on vapor separator tube and install clamp. Connect the electrical plug at fuel pump. Install a new gasket in fuel tank flange and insert vapor separator and fuel pump assembly into tank.
CAUTION:
Be sure fuel pump body is not contacting bottom of fuel tank.

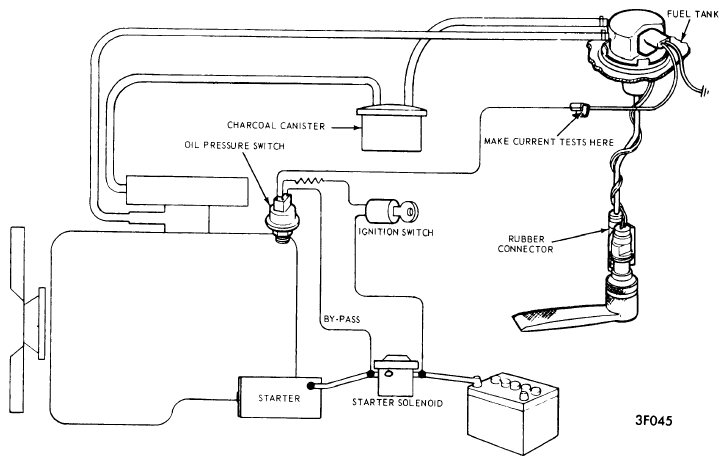

Rotate locking collar in tank flange until it locks in place. Connect the electrical plug into the top of vapor separator, then connect fuel line and vapor return line to vapor separator. Raise fuel tank into position and install retaining straps. Connect the electrical plug in front of tank. Connect battery.
