Wiring Diagrams

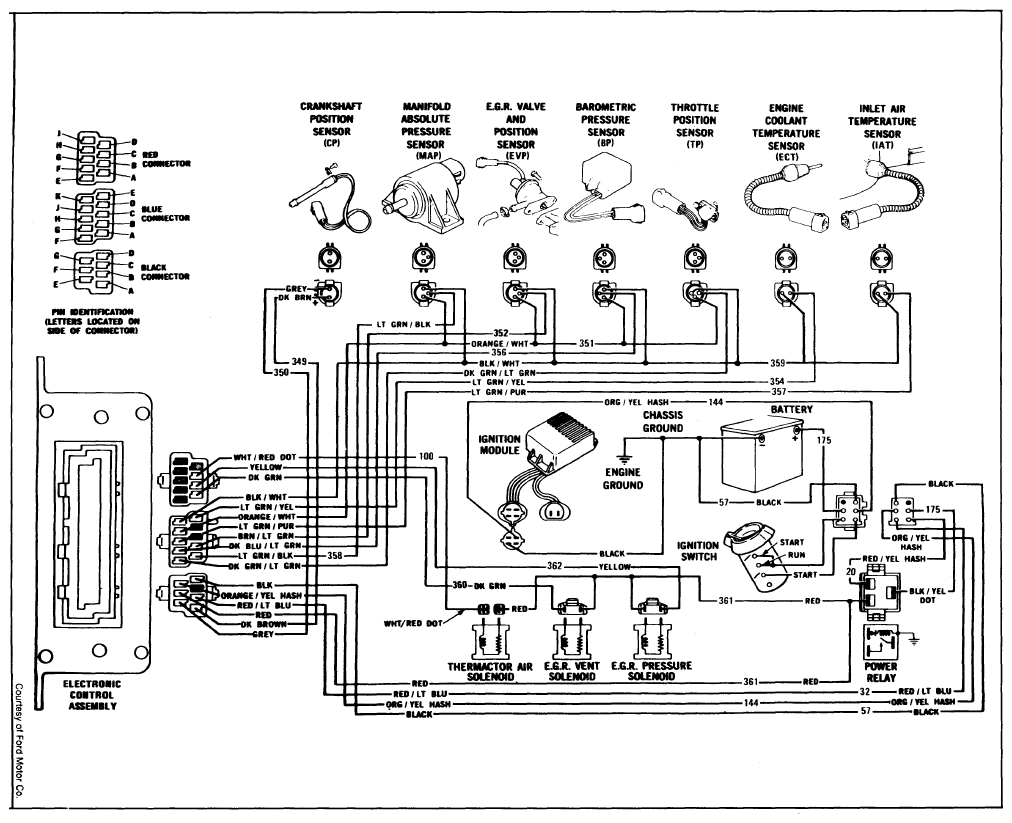

Fig 1: Electronic Engine Control I System Wiring Schematic
Courtesy of FORD MOTOR CO.
