Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Anti-Theft Module | On bracket, above glove box. | |
| Chime/Voice Alert Module | Behind center of instrument panel, below radio. | |
| Electronic Control Assembly | ||
| EEC III | Under left side of dash. | |
| EEC IV | On left side of firewall, below windshield wiper motor. See Figure. | |
| Ignition Module | ||
| EEC III | On left fender apron. | |

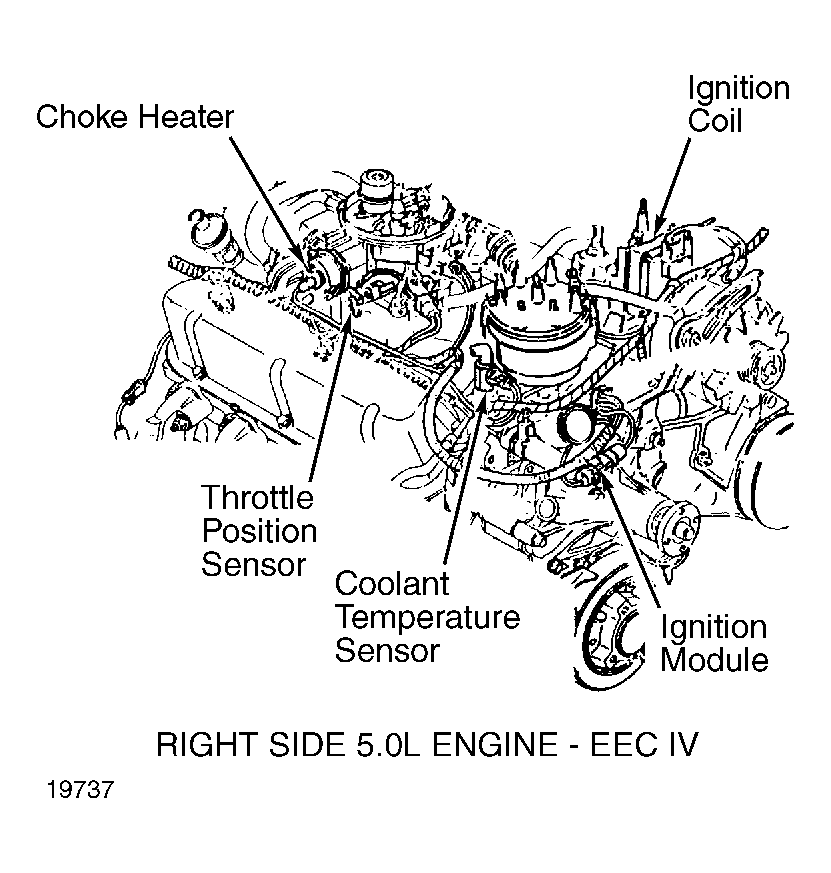

| EEC IV | Attached to side of distributor. See Figure. | |
| Illuminated Entry Module | Inside upper right cowl access hole. | |
| Keyless Entry Module | Inside upper right cowl access hole. | |
| Lamp-Out Warning Module | Under instrument panel, attached to center support brace. | |
| Low Fuel Warning Module | Under instrument panel, attached to center support brace. | |
| Message Center Module | Under instrument panel, attached to center support brace. | |
| Programmable Seat Memory Module | Under driver's seat, on left crossmember. | |
