Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

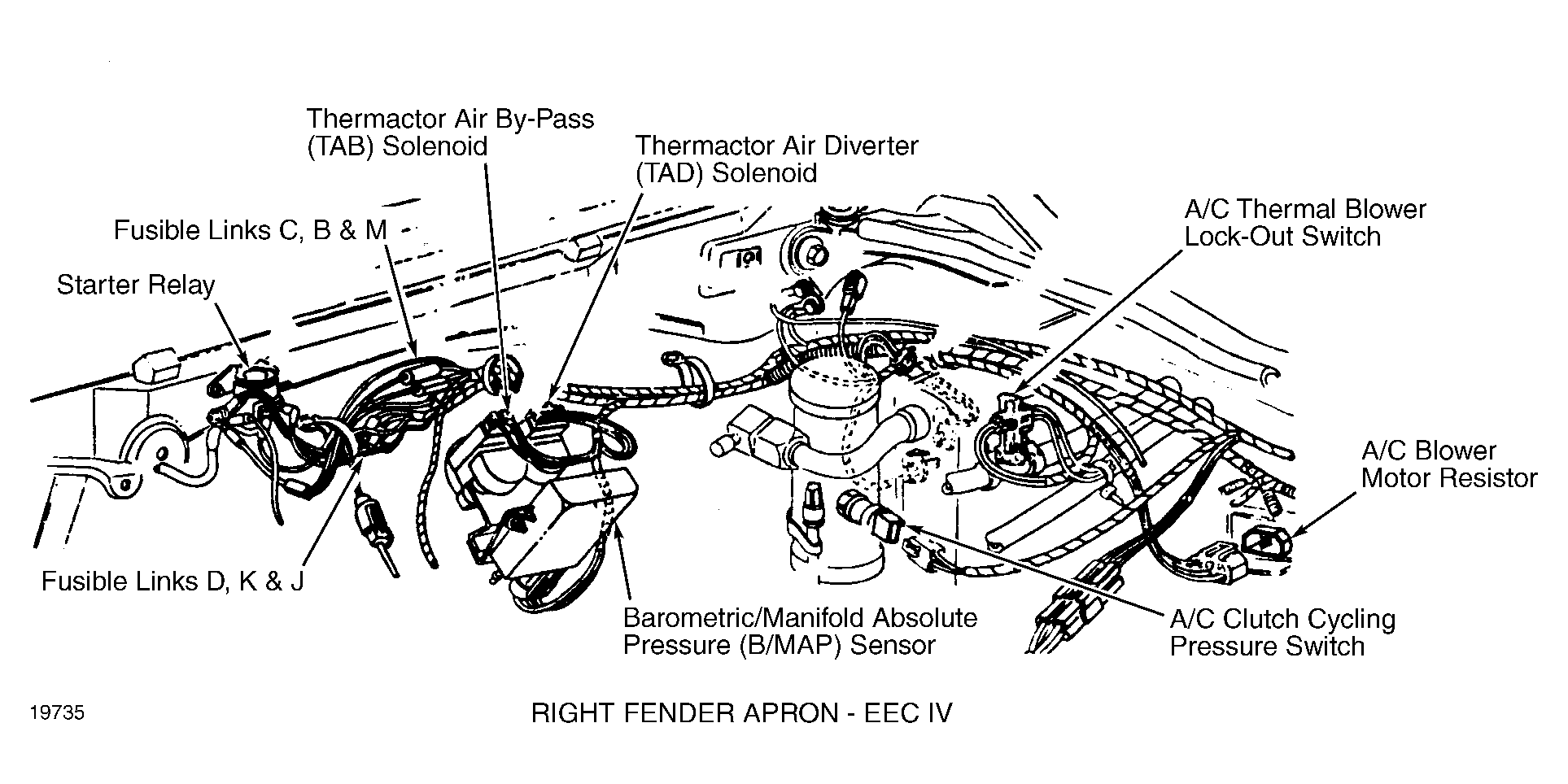

| A/C Blower Motor Resistor | On right side of firewall. See Figure. |
| Anti-Theft Diode | Over plastic panel, on right side of instrument panel. |
| Anti-Theft Fuses | On bracket, above glove box. |
| Cruise Control Amplifier | Under left side of instrument panel. |
| Fuse Block | Under instrument panel, left of steering column. |
| Fusible Links | On right fender apron, next to starter relay. See Figure. |
| Hazard Flasher | On rear side of fuse block. |
| Headlight Hi/Lo Beam Photocell Amplifier | On frame, next to left side headlights. |
| In-Line Circuit Breaker | Attached to starter relay. |
| Radio Choke | Strapped behind right side of radio. |
| Radio Equalizer Amplifier | Attached to left rear side of rear seat. |
| Radio Noise Capacitor | At ignition coil mounting bracket. |
| Turn Signal Flasher | On lower left corner of fuse block. |
| Voltage Regulator | On left fender apron. See Figure. |
| Windshield Wiper Interval Governor | Behind instrument panel, left of steering column. |
