Quick Checks

All Quick Checks are performed in the vehicle luggage compartment using the EEC IV Breakout Box (T83L-50-EEC-IV) or equivalent and Anti-Lock Test Adapter (T85P-50-ASA). Connect break-out box and follow Quick Check Chart to trouble shoot system. See Fig 1 .

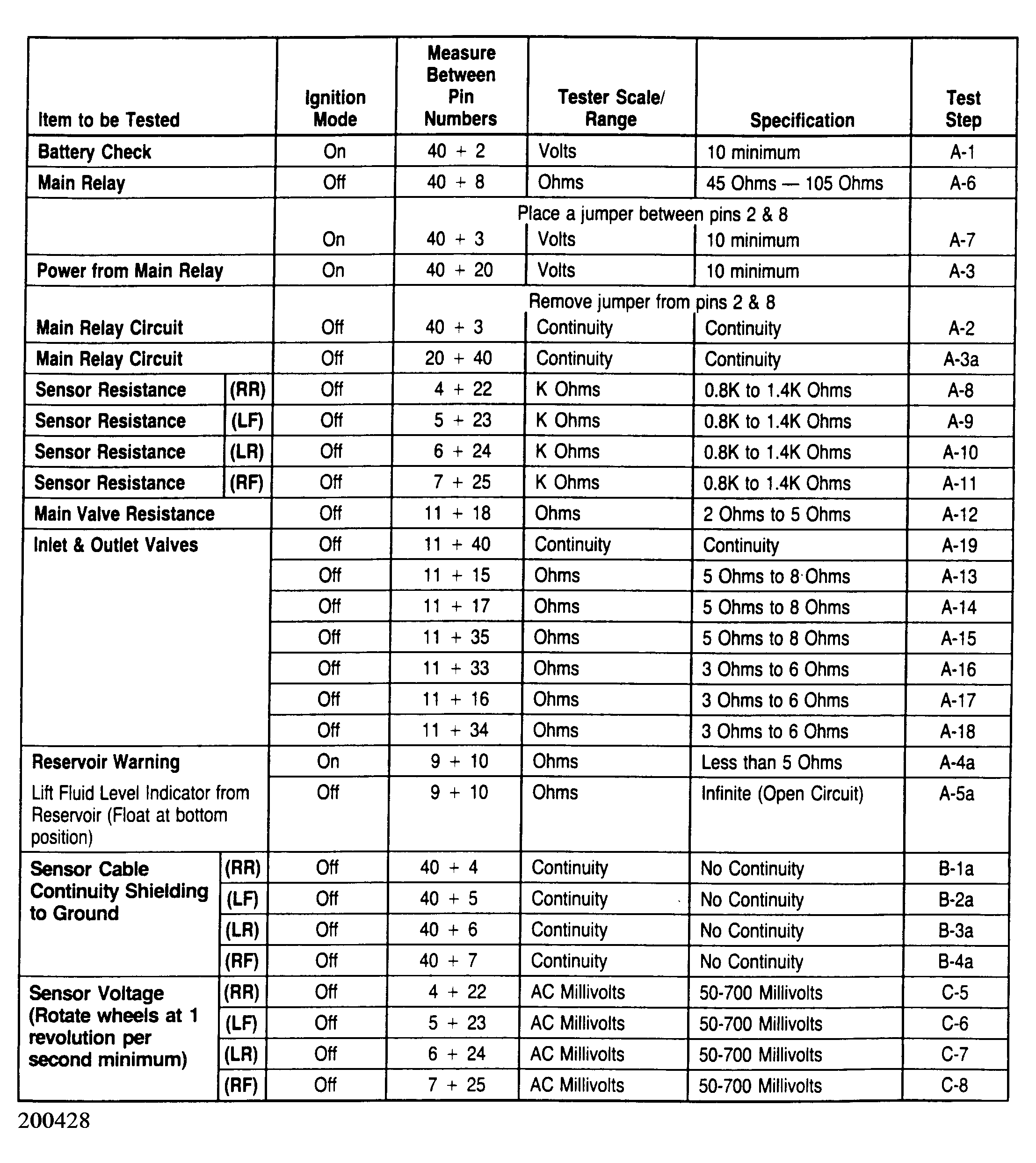

Fig 1: Test "A" Pin-Out Checks

Courtesy of FORD MOTOR CO.
