5.0L SEFI EEC IV Testing
›
Wiring Diagrams
Wiring Diagrams

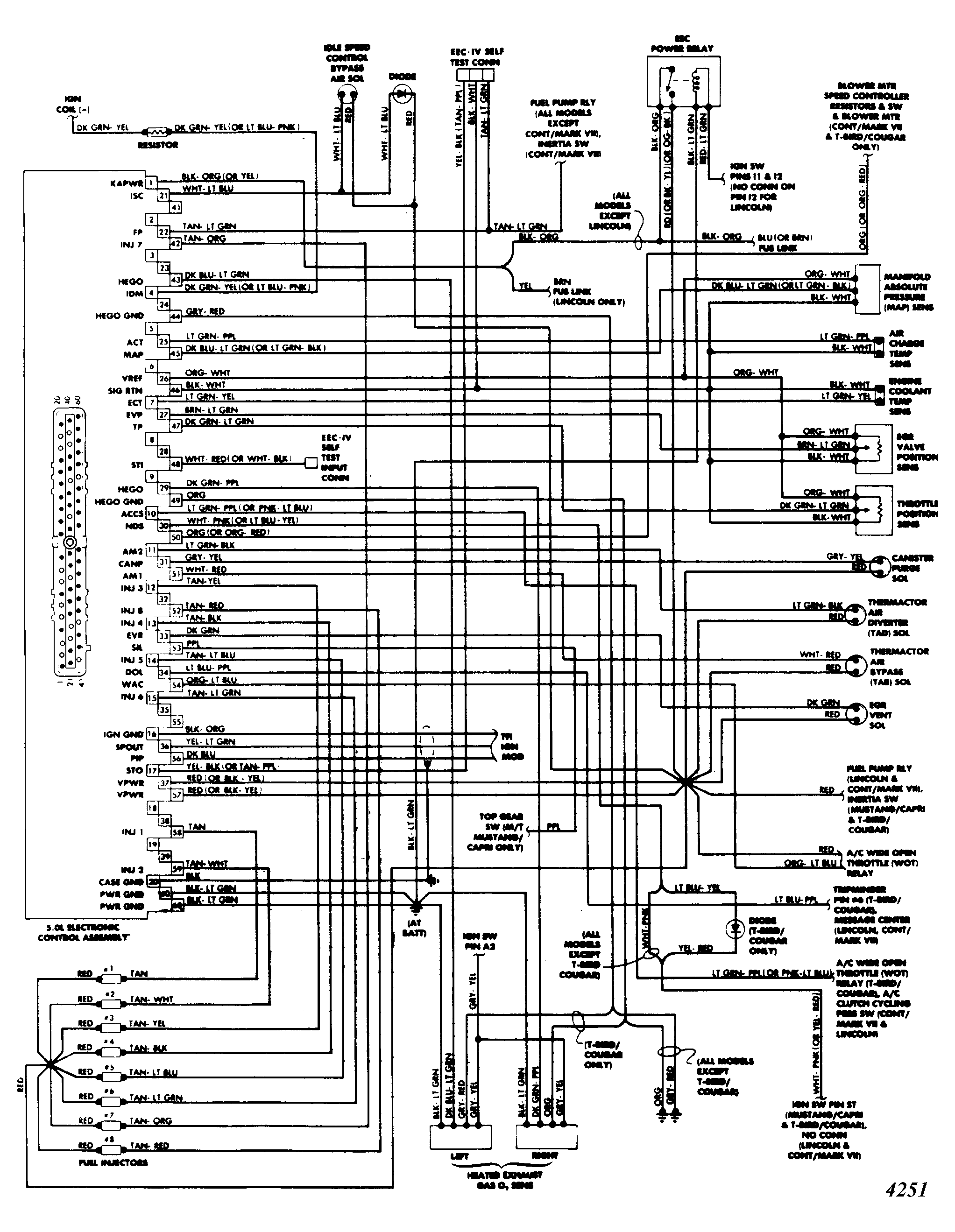

Fig 1: SEFI EEC-IV Wiring Diagram (Exc. Crown Victoria & Grand Marquis)

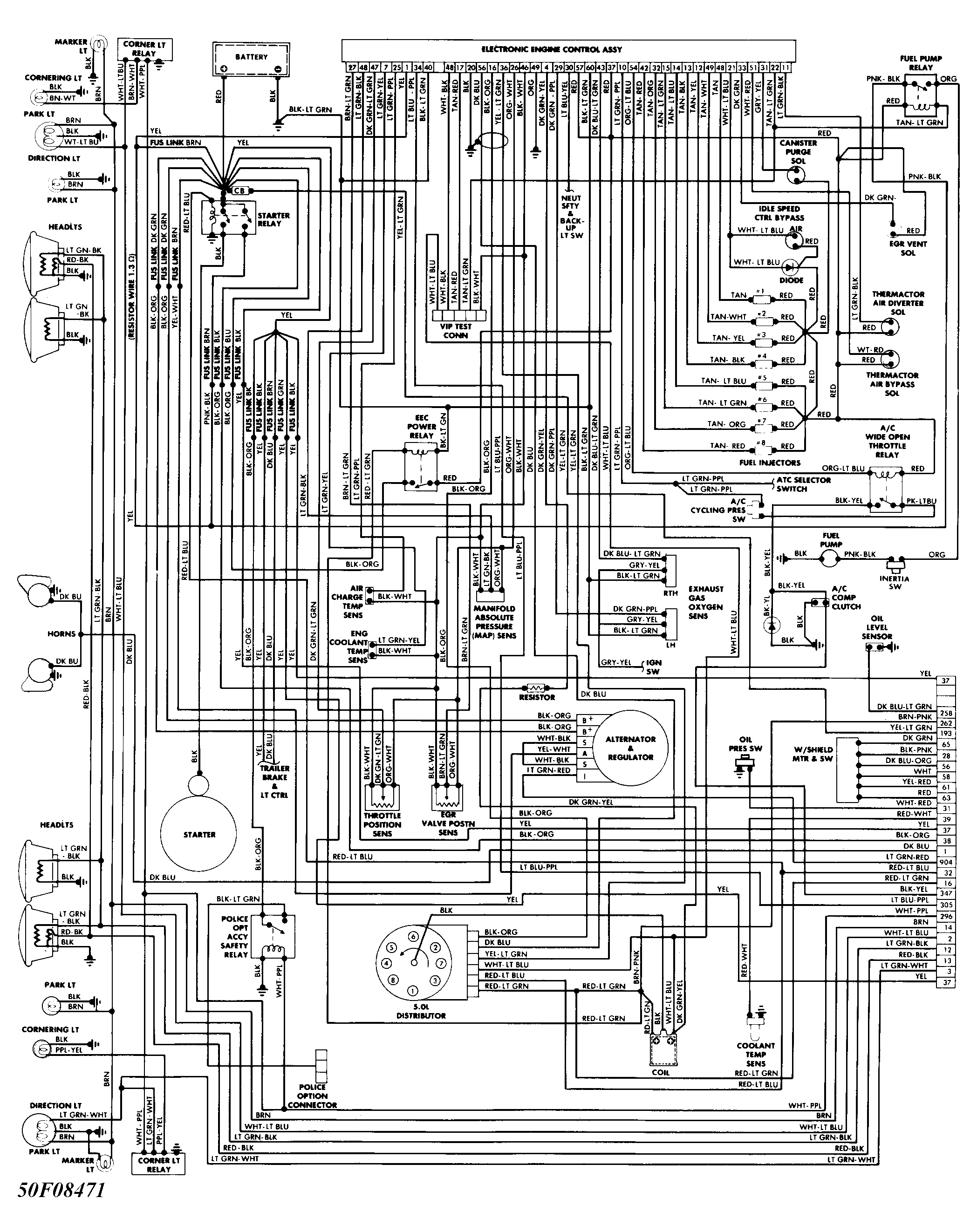

Fig 2: SEFI EEC-IV Wiring Diagram (Crown Victoria & Grand Marquis)
