Wiper Switch Continuity
Check wiper switch for continuity using WIPER SWITCH CONTINUITY TEST. Disconnect connector under steering column and test with self-powered test light or ohmmeter. An ohmmeter is required for intermittent wiper test. If switch does not show required continuity, or poor continuity exists in any position, replace switch.
NOTE:

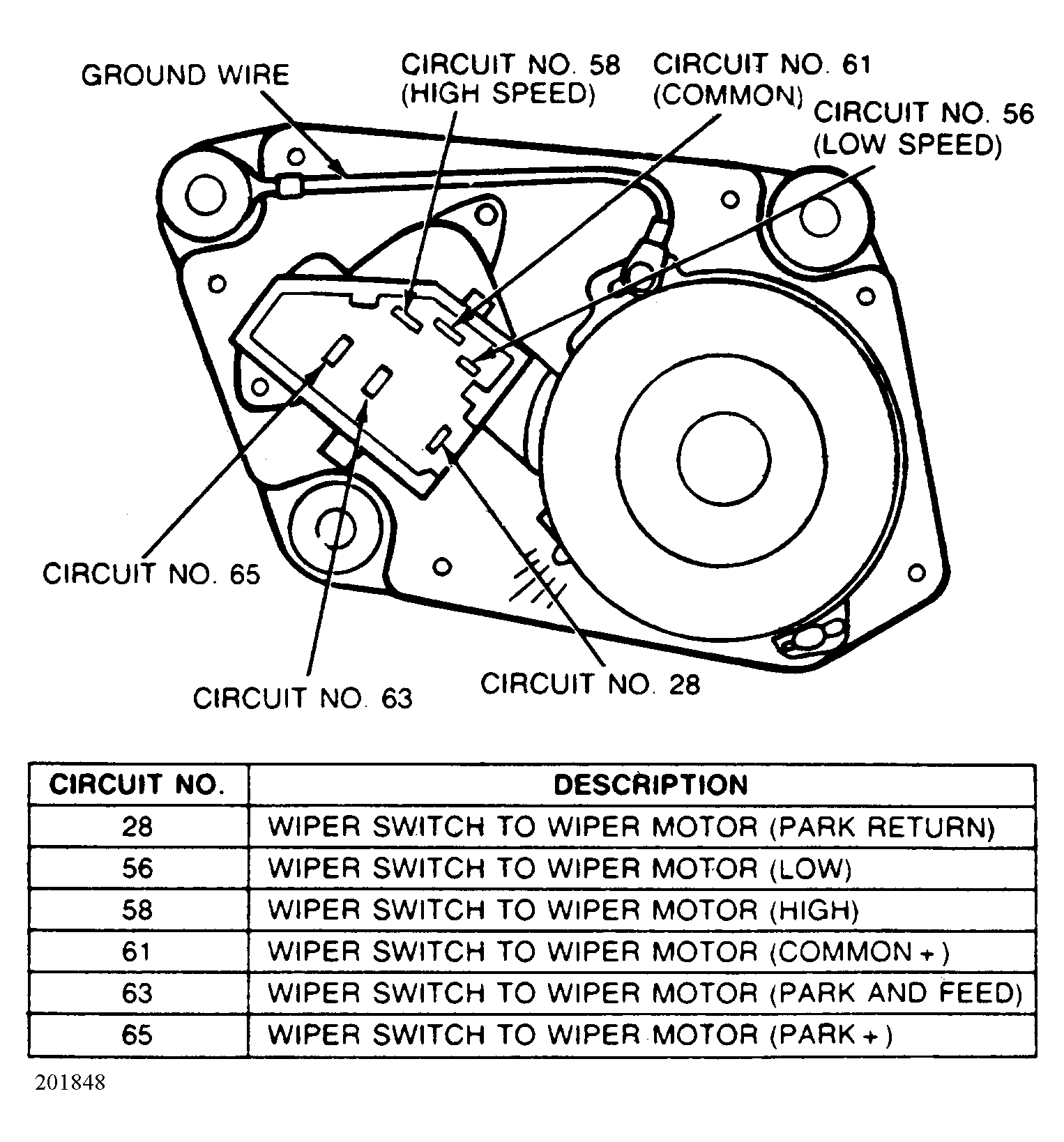

See wiper switch connector terminal identification in Fig. Fig 1
.
WIPER SWITCH CONTINUITY TEST
| Position | Standard Wiper | Interval Wiper | ||
|---|---|---|---|---|
| OFF | C-D, F-L | F-L, P-G | ||
| LOW | B-C, G-L | R-L-G | ||
| HIGH | B-C, G-H | R-H-G | ||
| INTER | N/A | (1) L-G, G-R | ||
| WASH | B-W | B-W | ||
|
||||
