Wiring Diagrams

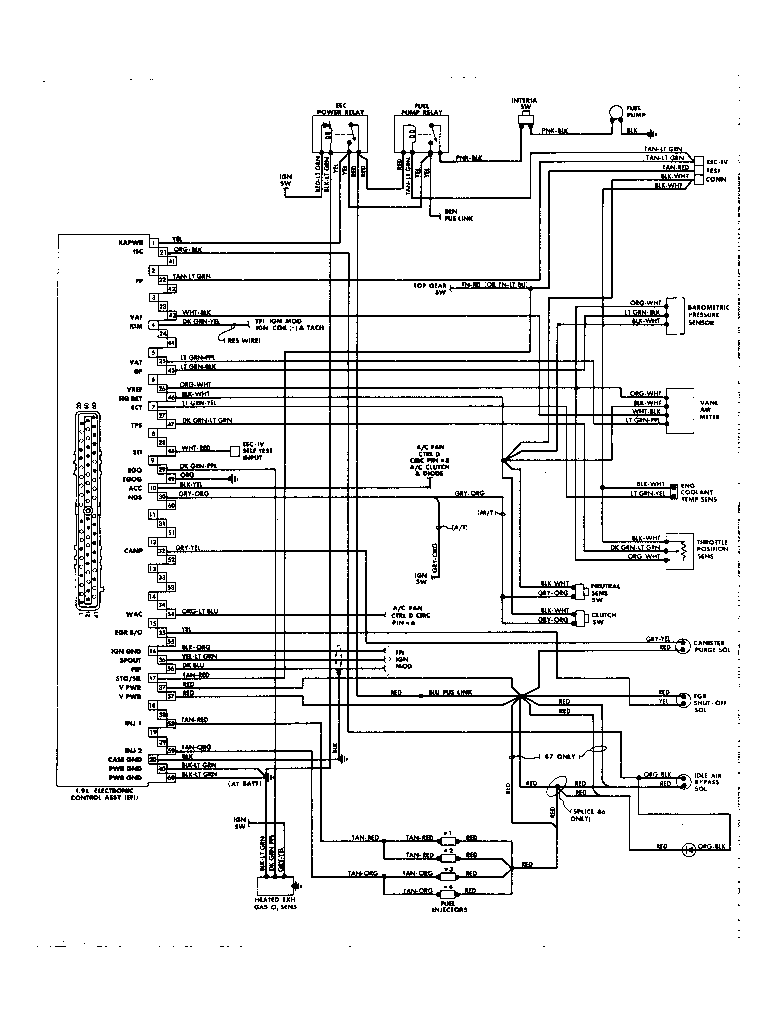

Fig 1: 1.9L MPFI System Wiring Diagram

G7694

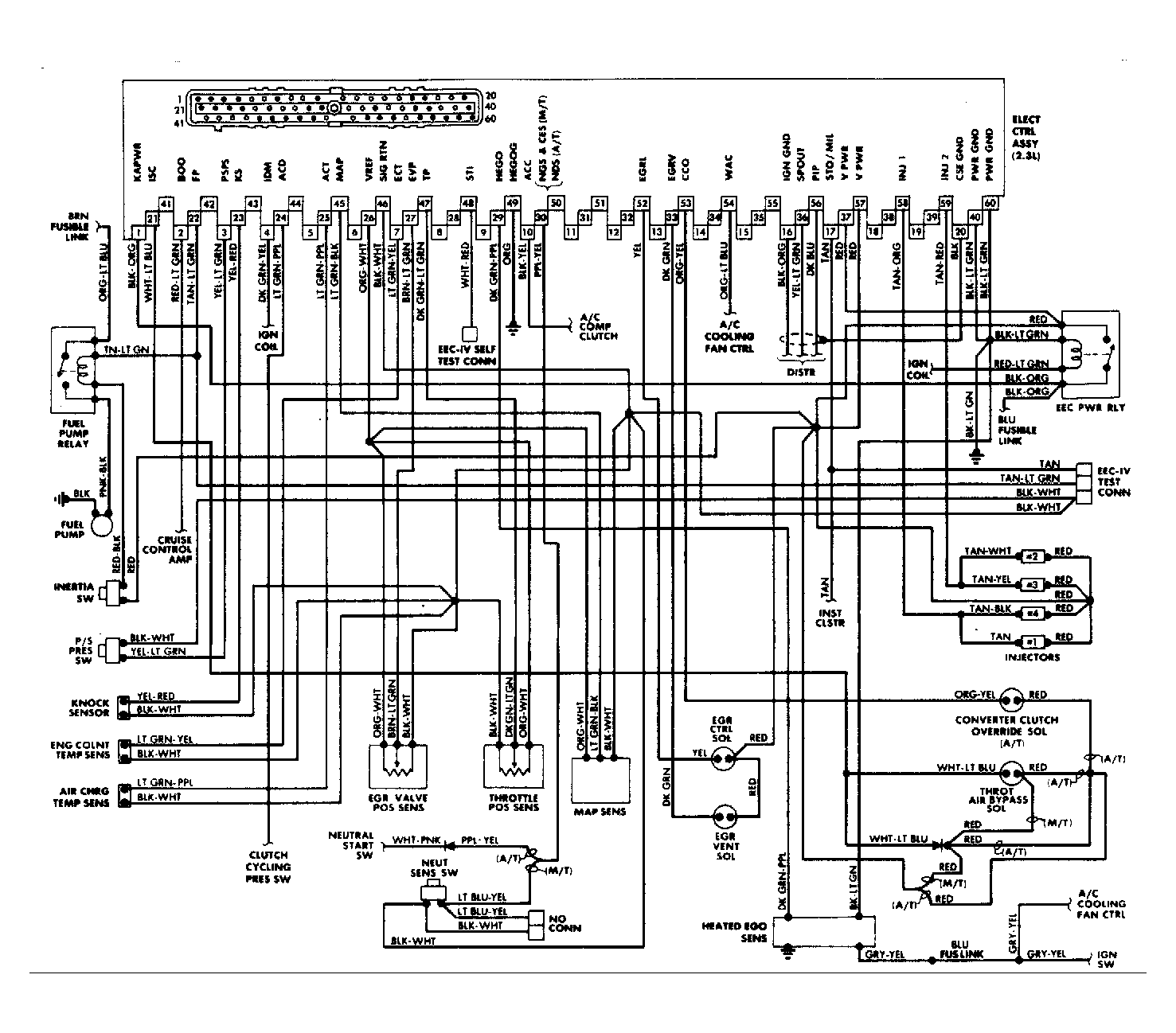

Fig 2: 2.3L MPFI System Wiring Diagram

G7695

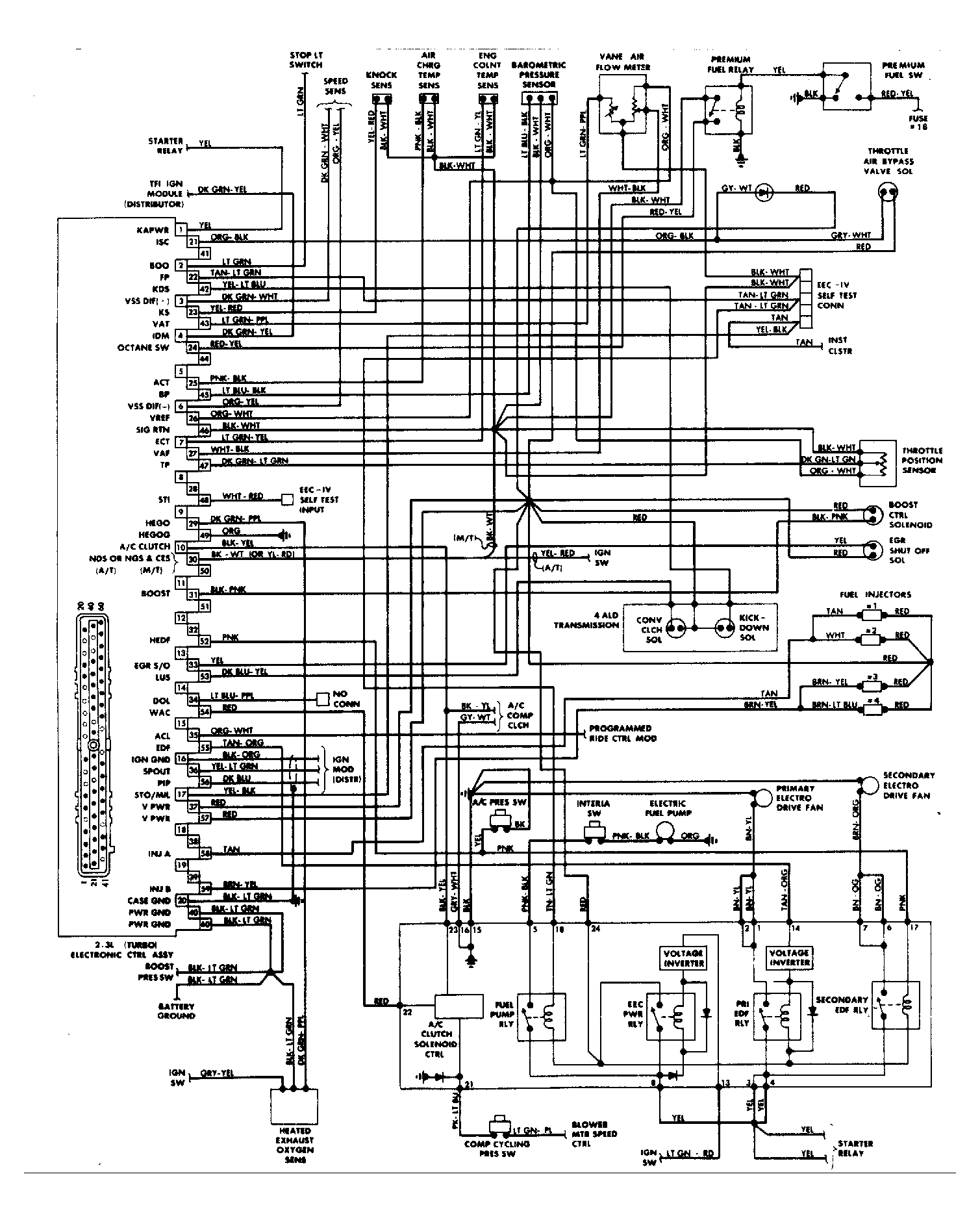

Fig 3: 2.3L Turbo MPFI System Wiring Diagram

G7696

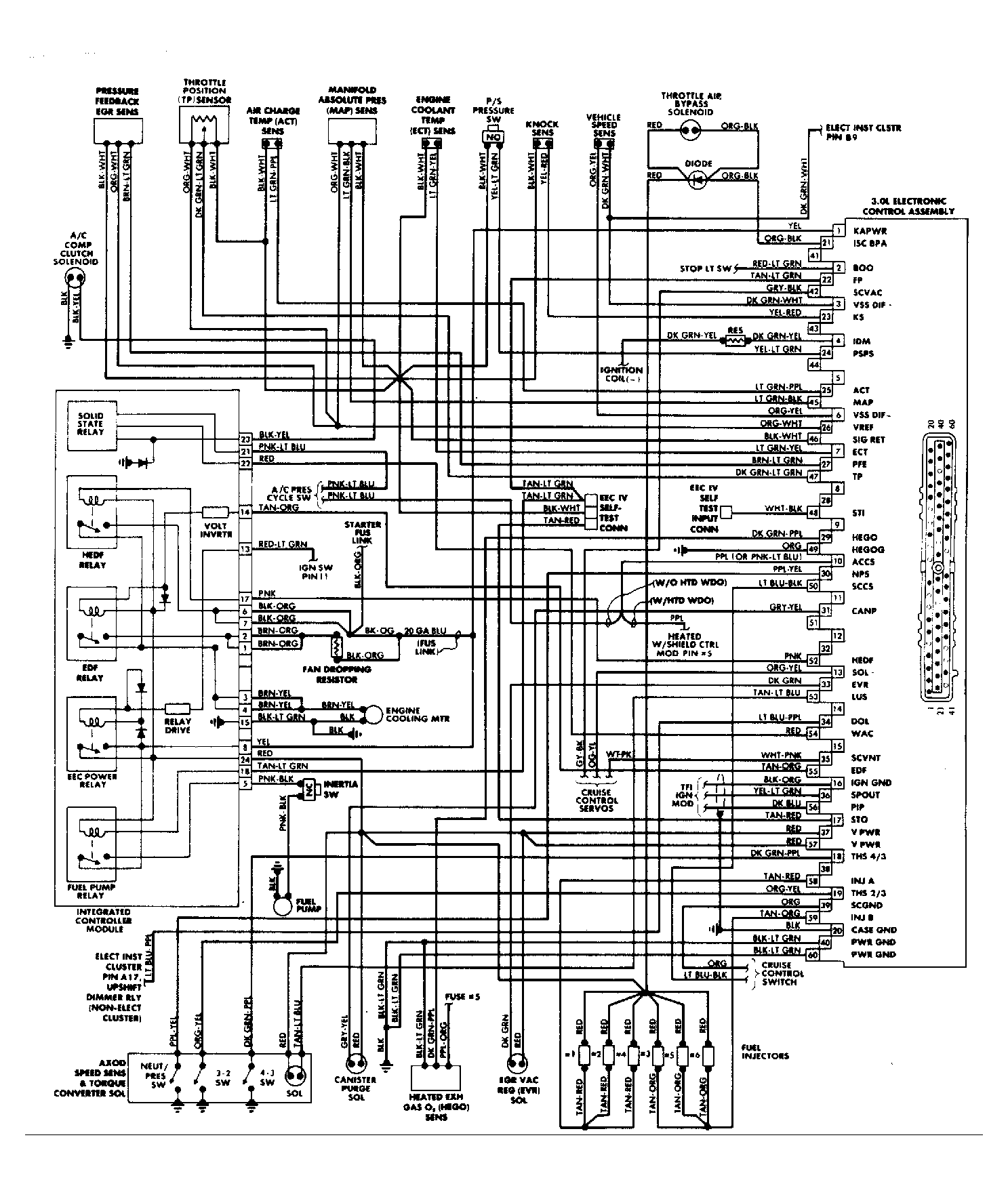

Fig 4: 3.0L MPFI System Wiring Diagram

G7697

Fig 5: 5.0L SPFI System Wiring Diagram

G6658
