Section 3 (Suspension - Programmed Ride Control): Wiring Diagram

WARNING: This page is about a different car, the 1992 Ford Probe. However, it is still accessible from the selected car via links, so may be relevant.

For additional information, see appropriate chassis wiring in WIRING DIAGRAMS Section.

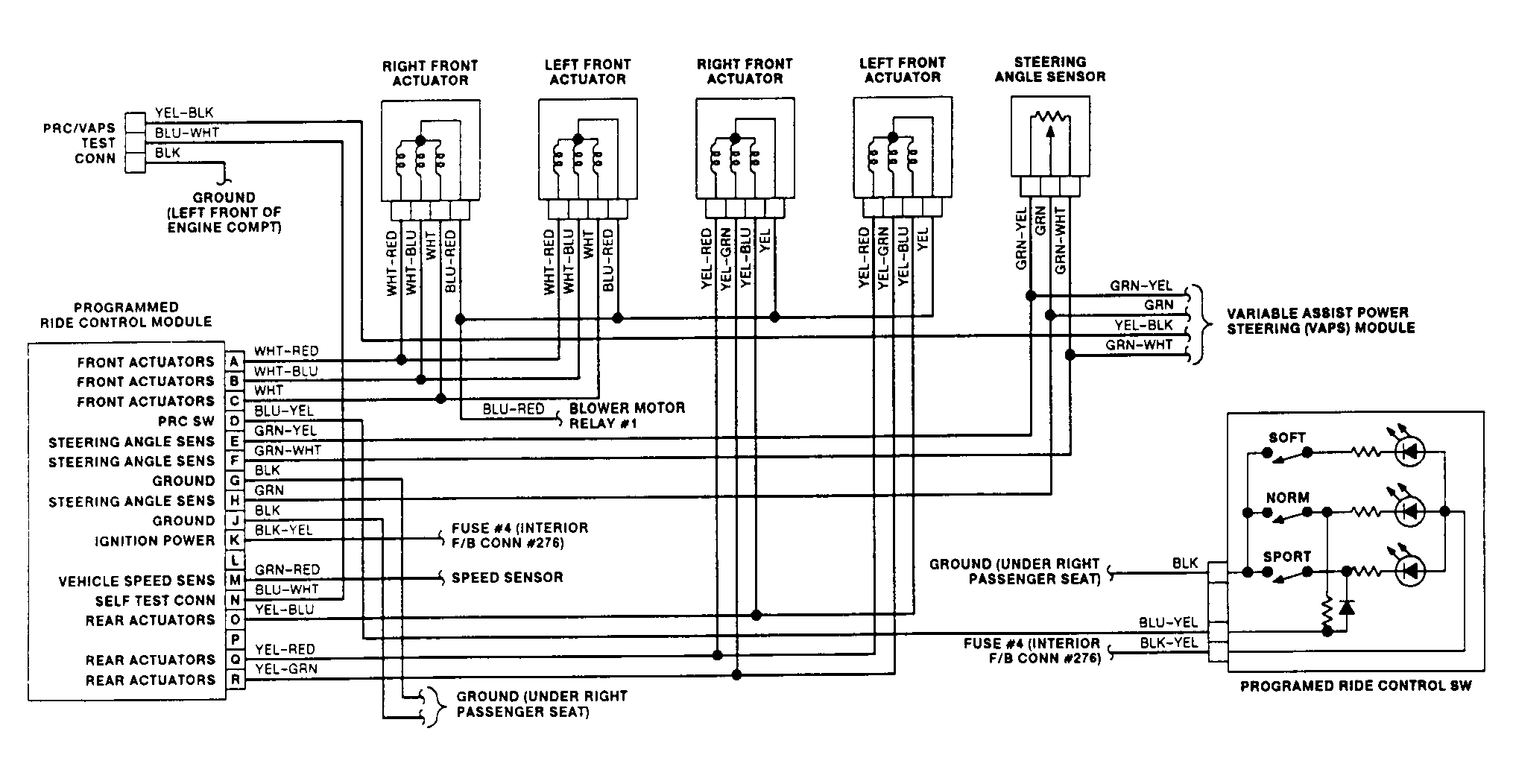

Fig 1: Programmed Ride Control Wiring Diagram w/ Connector I.D.

Courtesy of FORD MOTOR CO.
