Direct Clutch Assembly: Disassembly

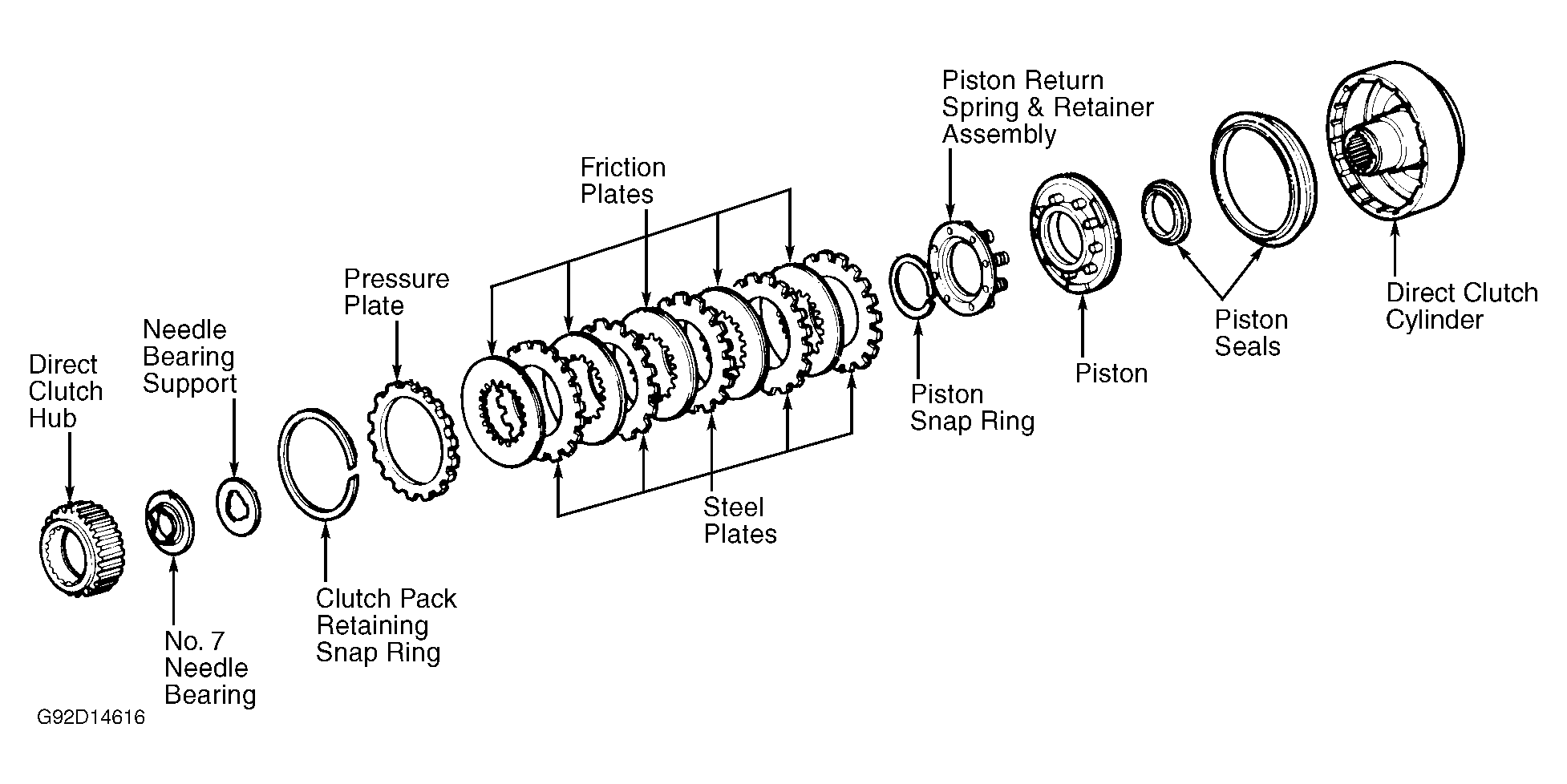

- Remove No. 7 direct clutch hub inner needle bearing and bearing support. Using a screwdriver, remove clutch pack selective retaining snap ring and lift out clutch pack. See Figure .
- Using a Compressor (T65L-77515-A), compress piston return springs and remove retaining snap ring. Remove tool and lift spring retainer assembly and piston from clutch drum.
- If necessary, piston can be removed by applying compressed air to lubrication hole in clutch drum. Note position and direction of lip seals. Remove seals from drum and piston.
