Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Power Seat/Door Lock, Rear Lighter & Keyless Entry | In cavity No. 12 of fuse block. See Figure . | |
| In-Line Power Window/Moon Roof | In cavity No. 14 of fuse block. See Figure . | |
| Power Window/Moon Roof & Flash-to-Pass | In cavity No. 14 of fuse block. See Figure . | |
| Windshield Wiper/Washer | In cavity No. 2 of fuse block. See Figure . | |

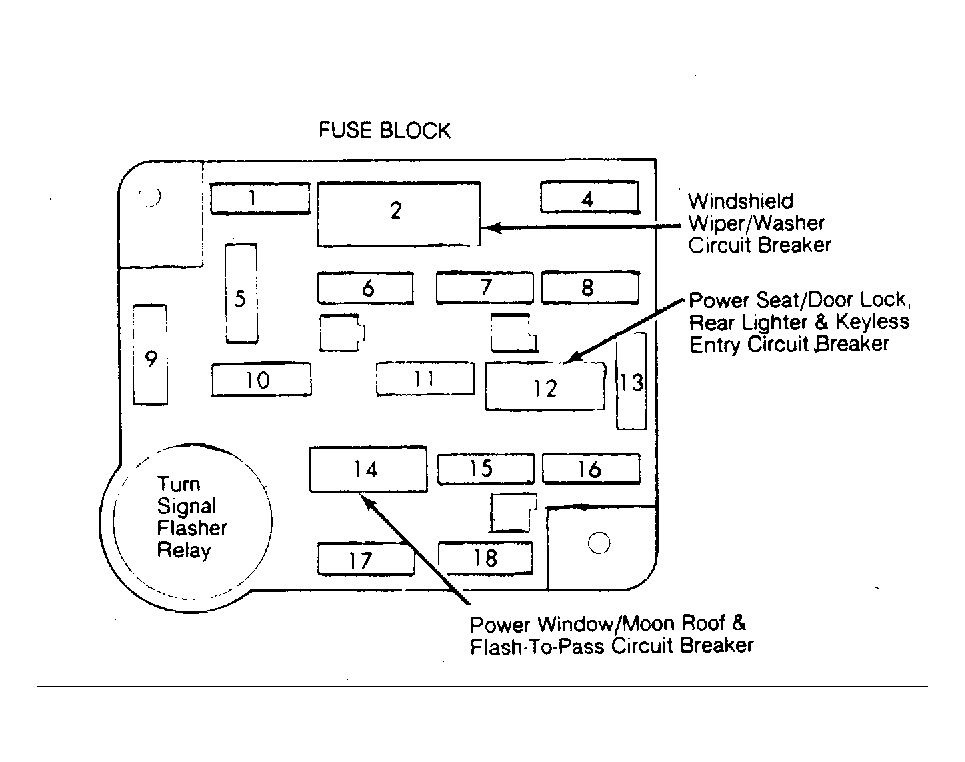

| Fuse Block | Under dash, left of steering column. See Figure . | |
| Fusible Links | ||
| Anti-Theft (Black) B | On left front fender panel. | |

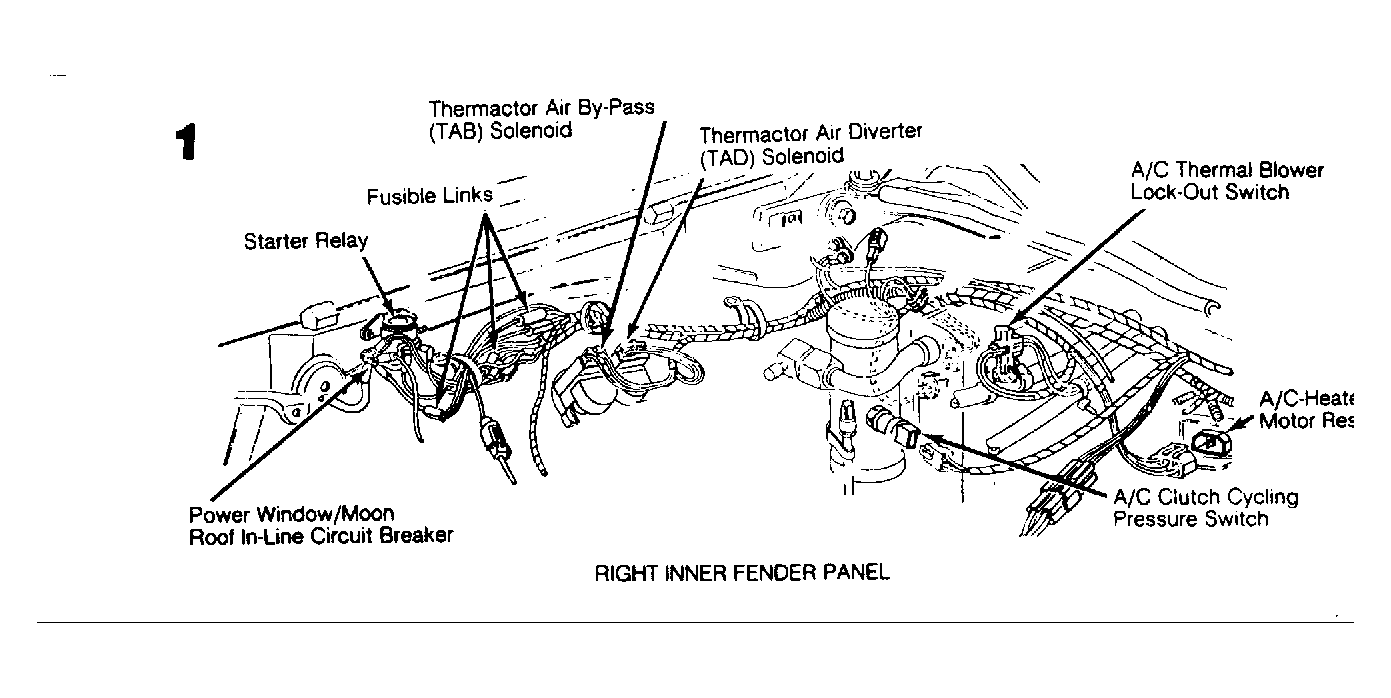

| Ignition Switch/Anti-Theft B (Black/16 ga.) | Attached to starter relay. See Figure . | |
| C (Black/16 ga.) Horn/Cigar Lighter | Attached to starter relay. See Figure . | |
| D (Blue/20 ga.) EEC Power Relay | Attached to starter relay. See Figure . | |
| E (Brown/18 ga.) Trailer Option | Attached to starter relay. See Figure . | |
| F (Brown/18 ga.) Radio | Attached to starter relay. See Figure . | |
| G & H (Black/16 ga.) Trailer Option | Attached to starter relay. See Figure . | |
| J (Black/16 ga.) Rear Defroster | Attached to starter relay. See Figure . | |
| K (Brown/18 ga.) EEC | Attached to starter relay. See Figure . | |
| L (Brown/16 ga.) Load Leveling | Attached to starter relay. See Figure . | |
| M (Blue/20 ga.) Message Center | Attached to starter relay. See Figure . | |
| P (Gray/12 ga.) Charging System | Attached to starter relay. See Figure . | |
| R (Blue/20 ga.) Ignition Coil | Attached to starter relay. See Figure . | |
| S (Brown/18 ga.) EEC | Attached to starter relay. See Figure . | |
| T (Brown/16 ga.) Load Leveling | Attached to starter relay. See Figure . | |
| U (Blue/20 ga.) Charging System | Attached to starter relay. See Figure . | |
| Y (Blue/20 ga.) Charging System | Attached to starter relay. See Figure . | |
