Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

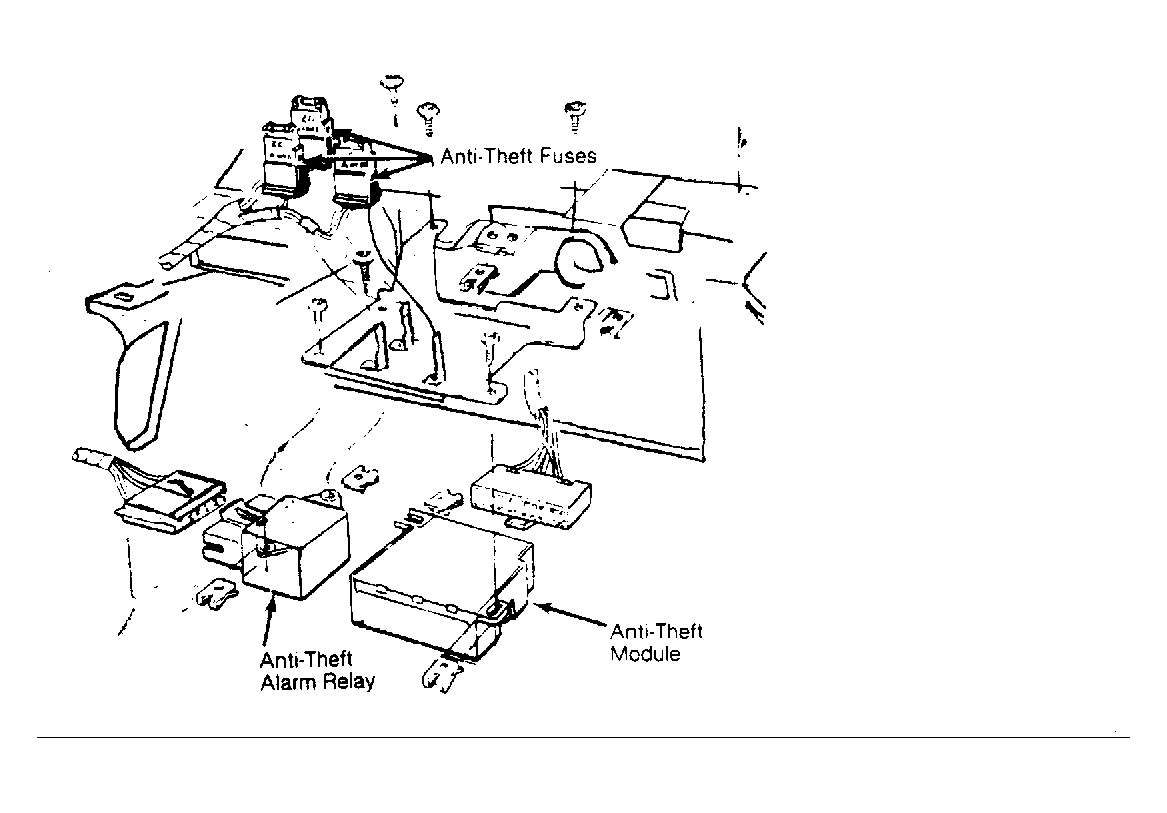

| Anti-Theft Module | Under dash, above glove box. See Figure . |
| Automatic/Auto Dimmer Control | On dash, to right of headlight switch. |
| Chime/Voice Alert Module | Behind center of dash, below radio. |
| Electronic Control Assembly (ECA) | Mounted through left side of firewall, below brake master cylinder. |
| Illuminated Entry Module | Behind right kick panel, at upper access hole. |
| Keyless Entry Module | Behind right kick panel, at upper access hole. See Figure . |
| Light-Out Warning Module | Under dash, attached to center support brace. See Figure . |
| Load Leveling Control Module | On right rear quarter panel, on bracket. |
| Low Fuel Warning Module | Under dash, attached to center support brace. |
| Message Center Module | Under dash, attached to center support brace. See Figure . |
| Rear Window Defroster Controller | At center of dash, next to function control. |
| TFI Ignition Module | Mounted to distributor. |
