Wiring Diagrams

Fig 1: ECA Connector Pin Diagram

G108650

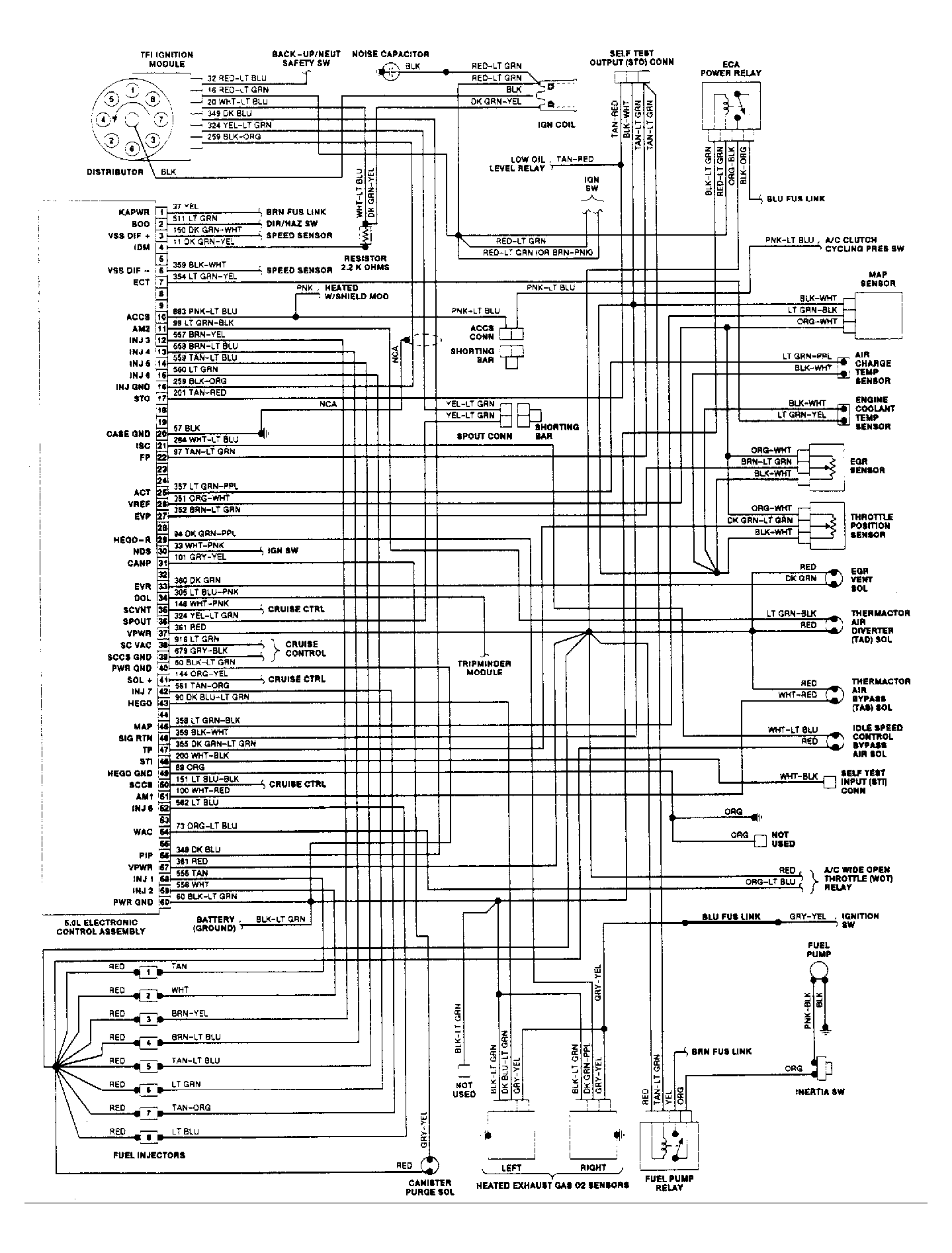

Fig 2: SEFI EEC-IV Wiring Diagram (Crown Victoria & Grand Marquis)

G108668

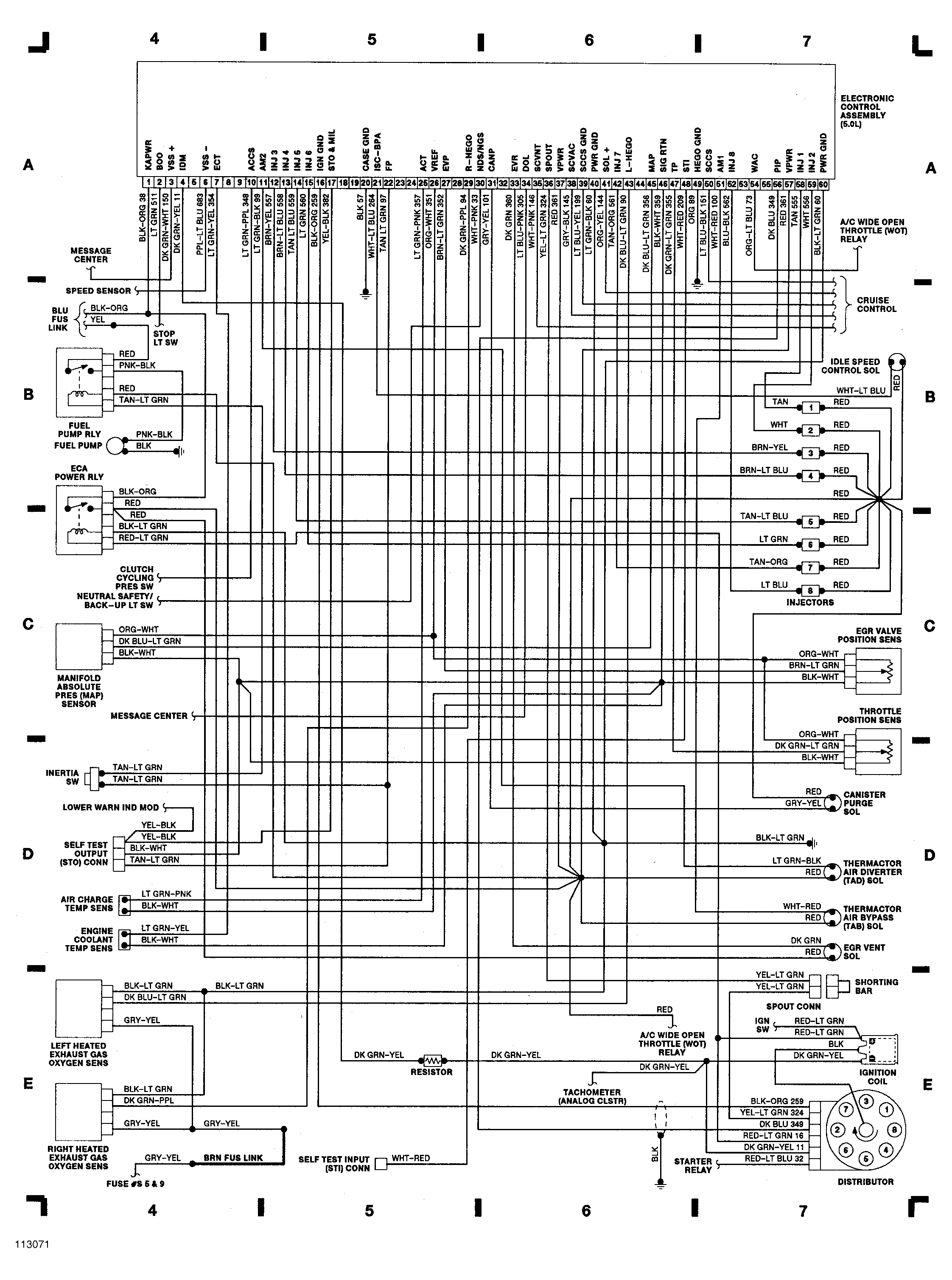

Fig 3: SEFI EEC-IV Wiring Diagram (Mark VII)

G113071

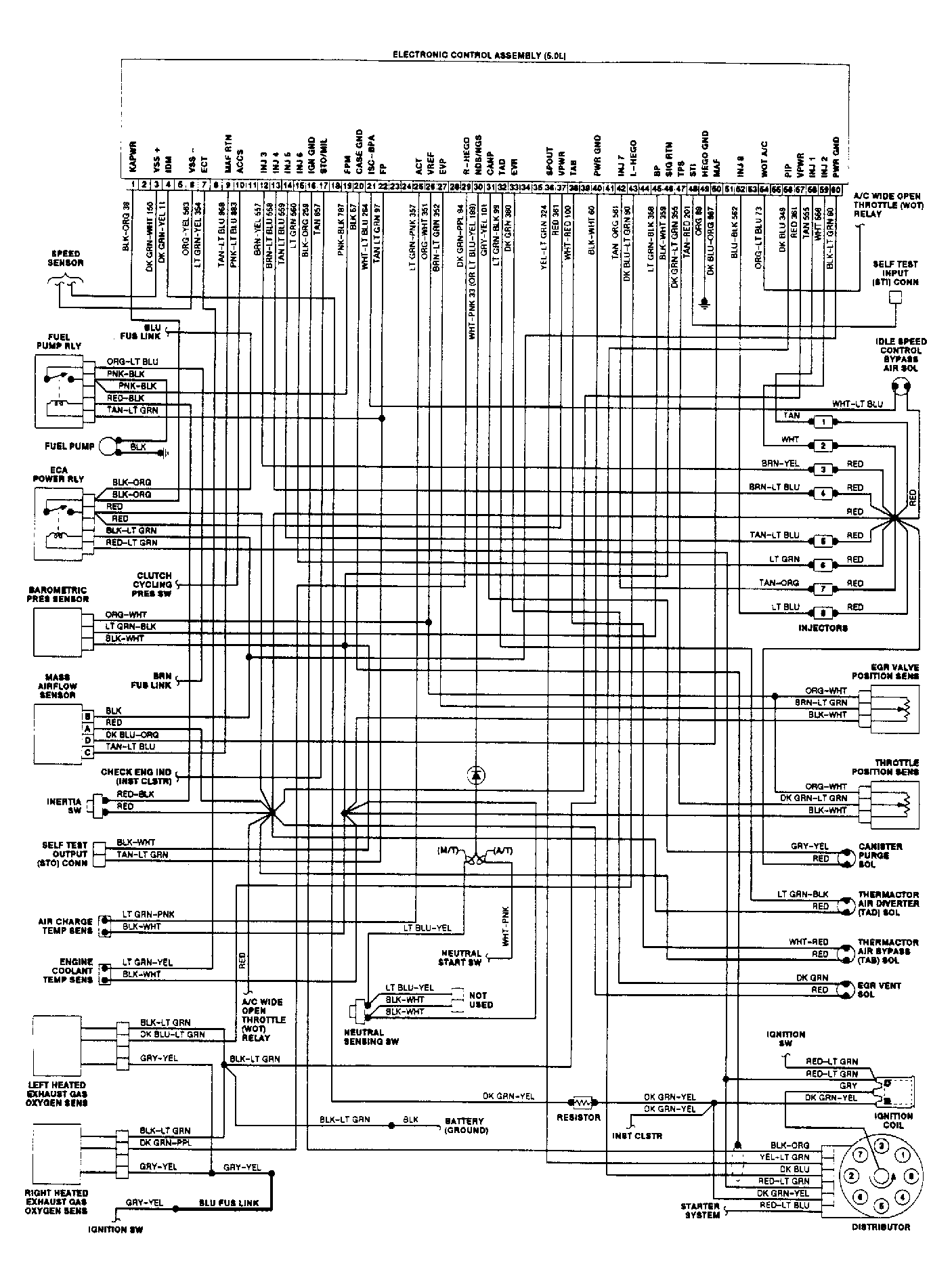

Fig 4: SEFI EEC-IV Wiring Diagram (Mustang)

G108670

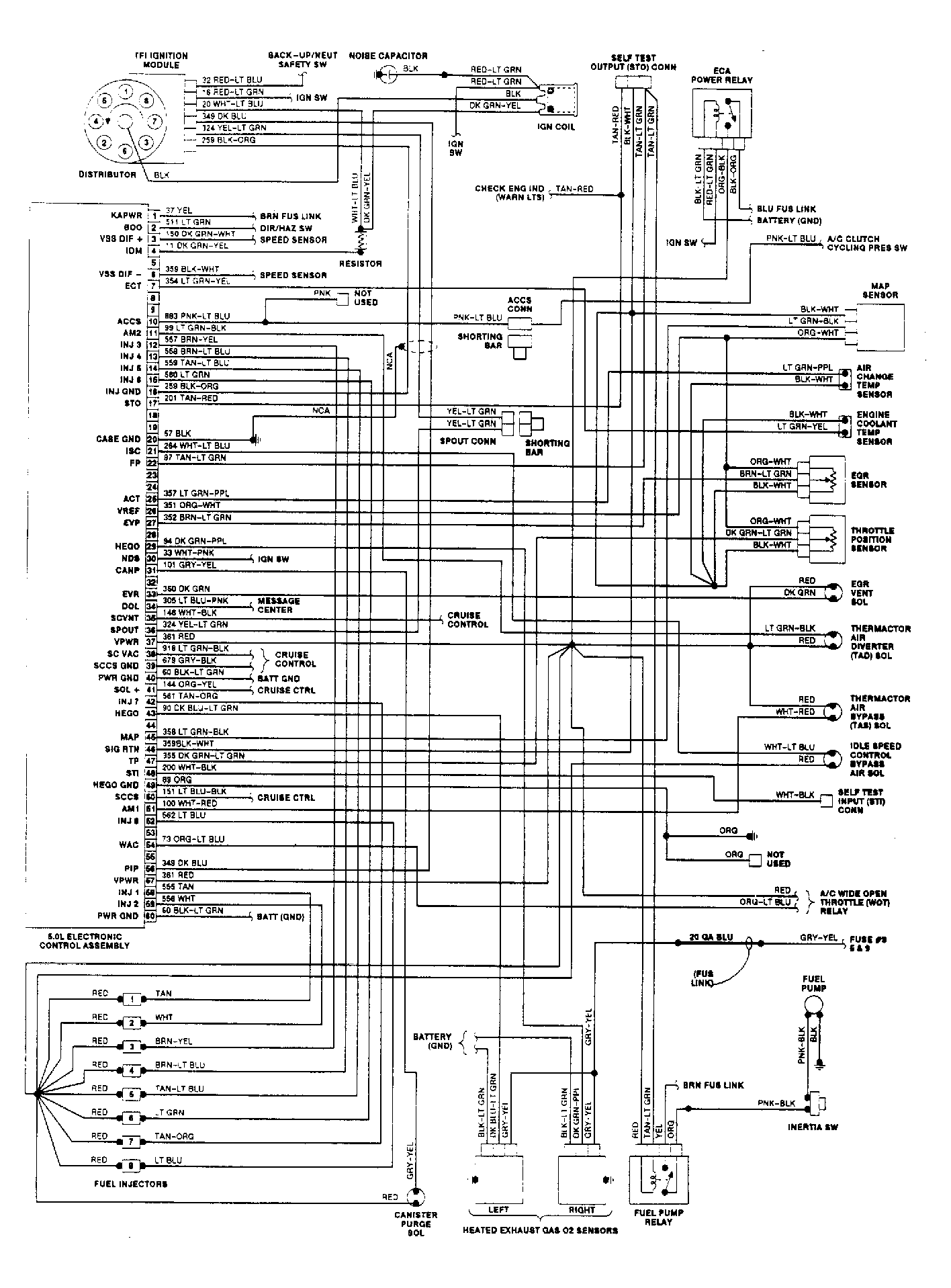

Fig 5: SEFI EEC-IV Wiring Diagram (Town Car)

G108671
