Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

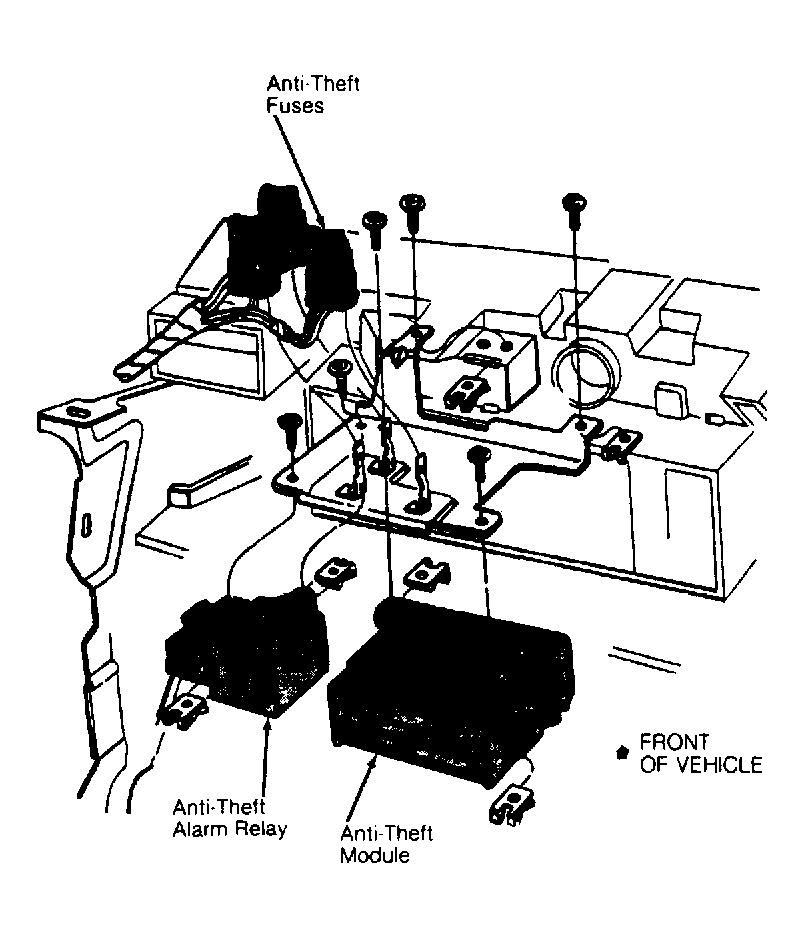

| Anti-Theft Module | Under dash, above glove box. See Figure . |
| Chime/Voice Alert Module | Behind center of dash, below radio. |
| Electronic Control Assembly (ECA) | On left of firewall, below wiper motor. |
| Keyless Entry Module | Behind right side instrument panel, above kick panel. |
| Light-Out Warning Module | Under dash, attached to center support brace. |

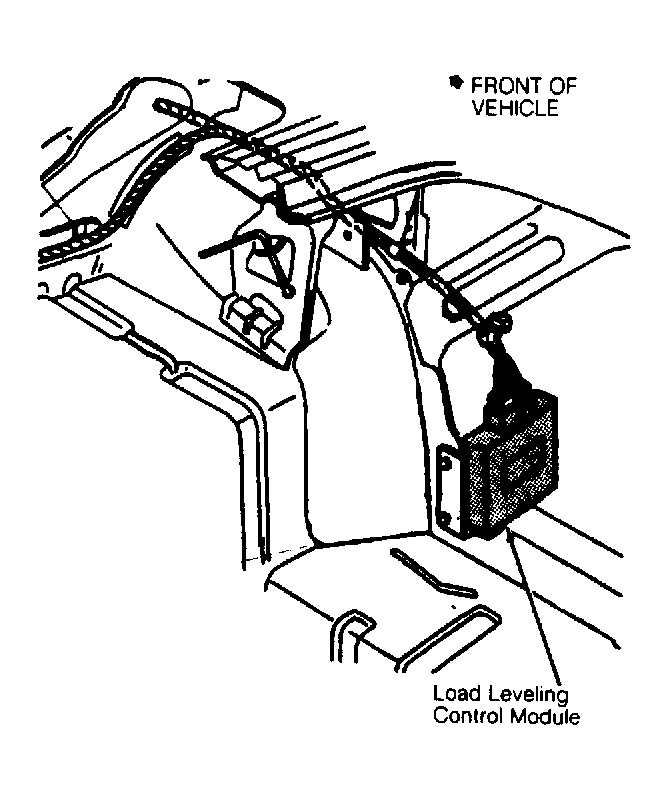

| Load Leveling Control Module | On right rear quarter panel, on bracket. See Figure . |
| Low Fuel Warning Module | Under dash, attached to center support brace. |
| Message Center Module | Under dash, attached to center support brace. |
| Rear Window Defroster Controller | At center of dash, next to function control. |
| TFI Ignition Module | Mounted to distributor. |
