Remote Keyless Entry: Notes
The remote/keyless entry system has four main components:

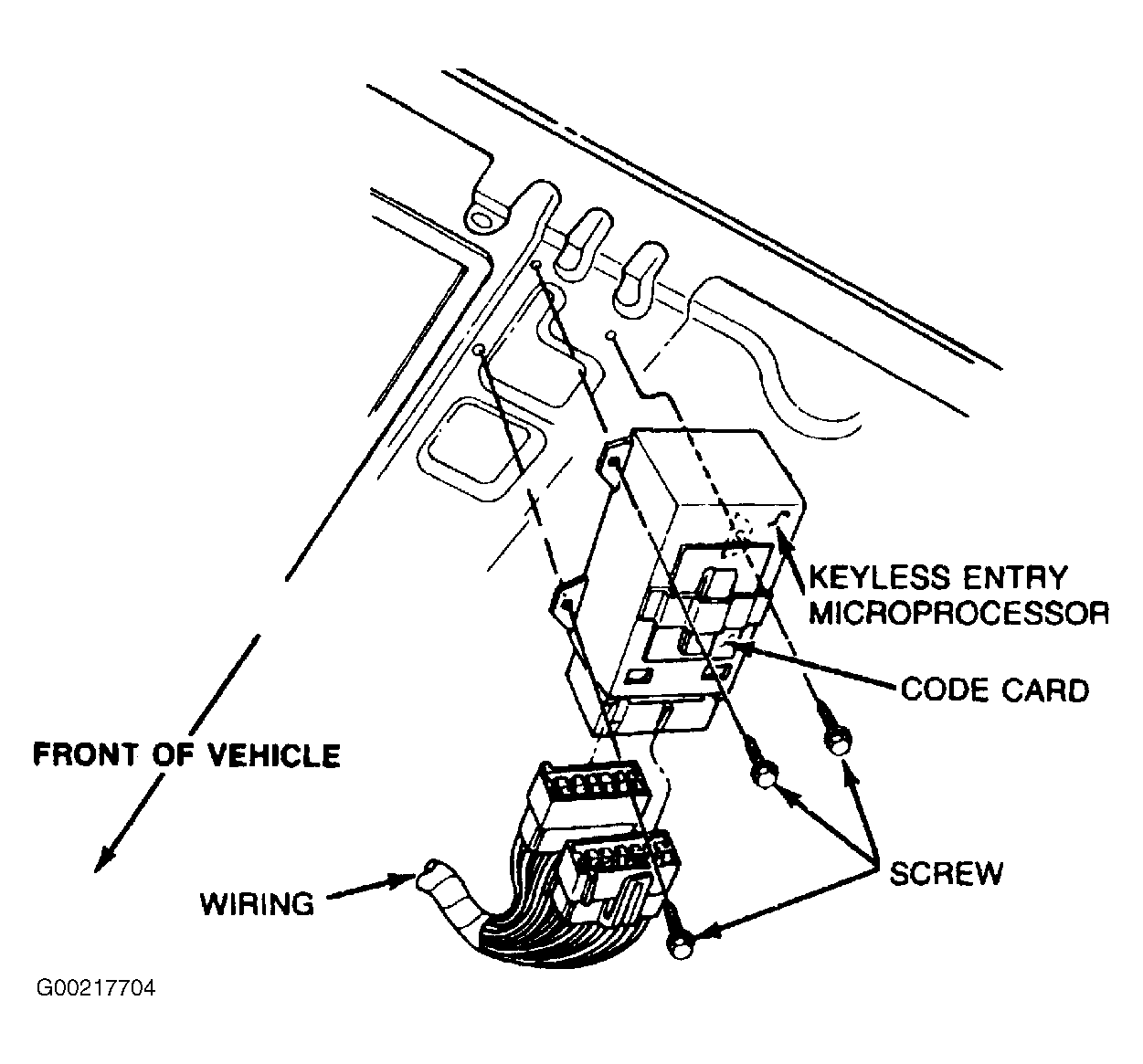

- The electronic keyless entry control module, located under the package tray in the luggage compartment.

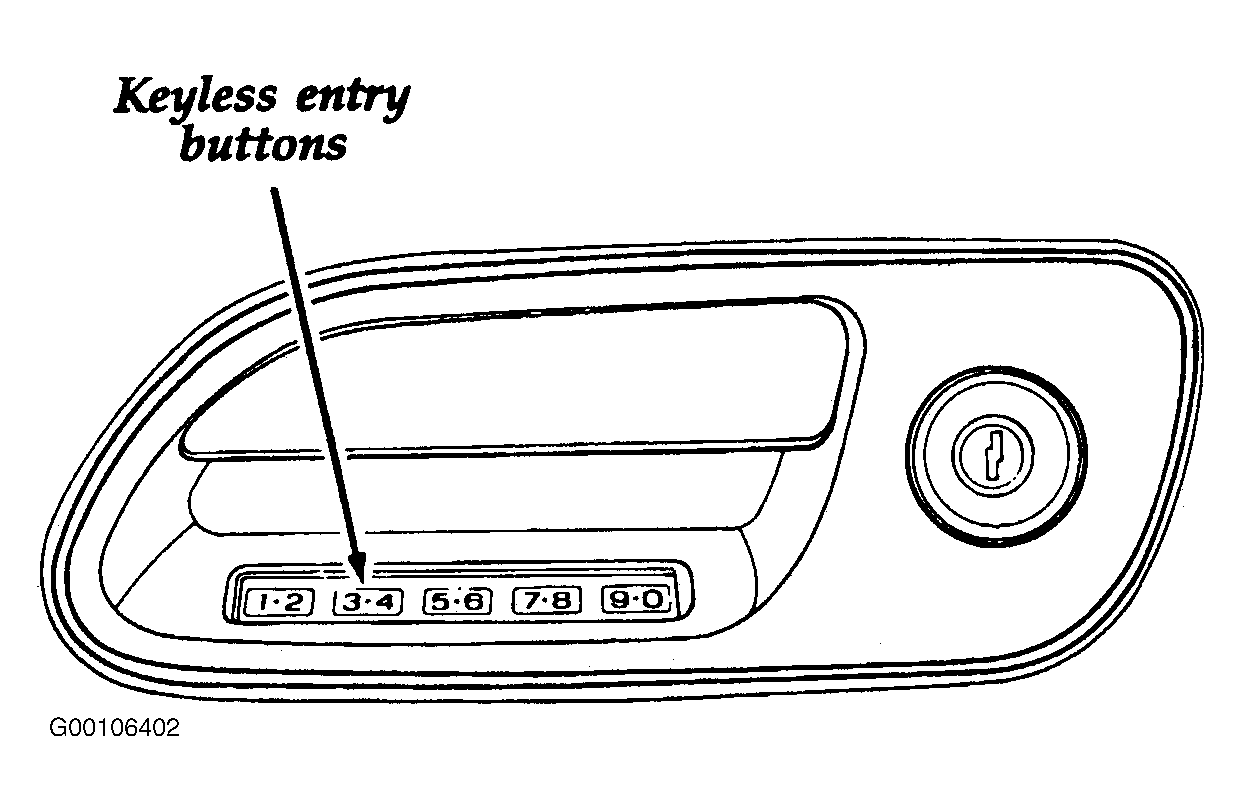

- The five-button keypad on the driver's door

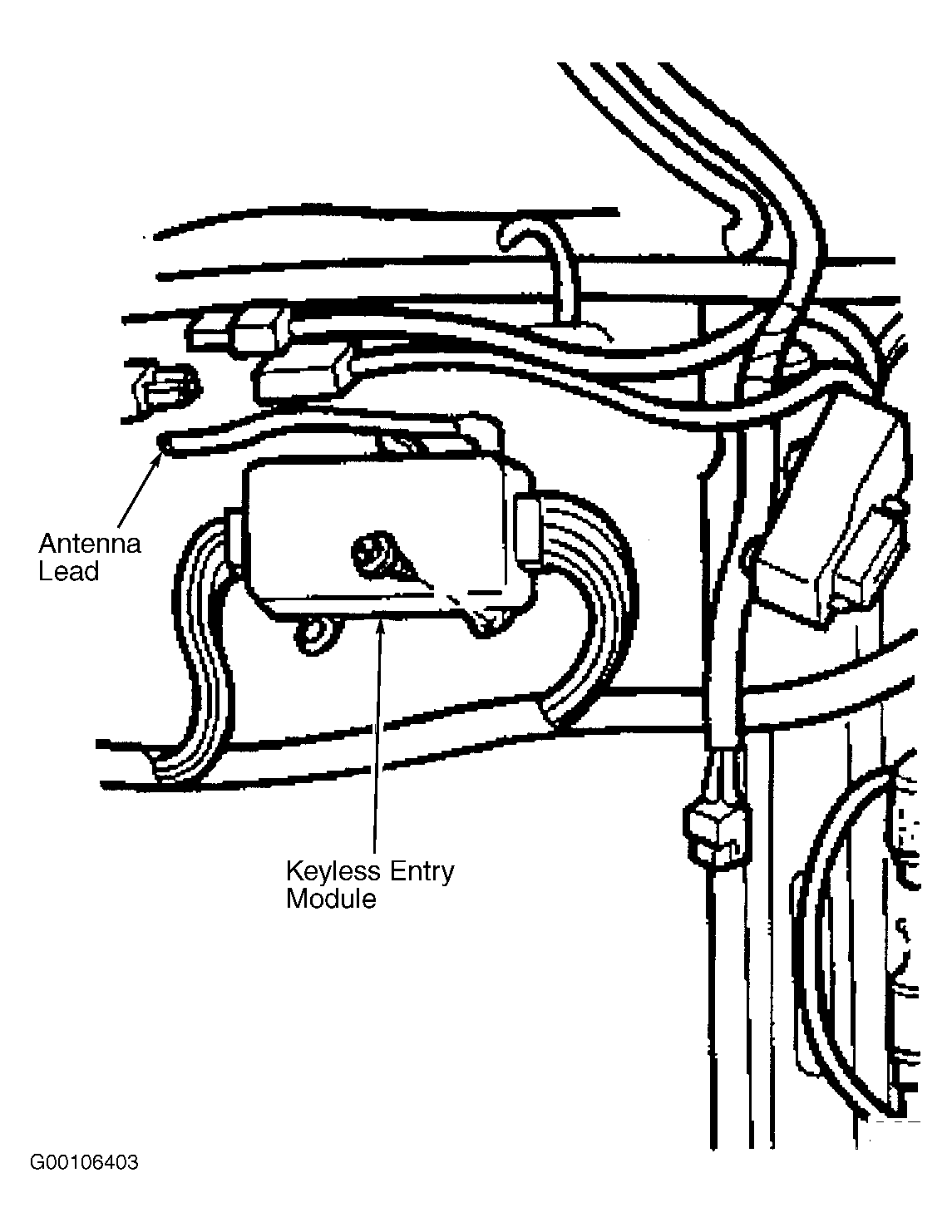

- The antenna located under the C-pillar trim panel

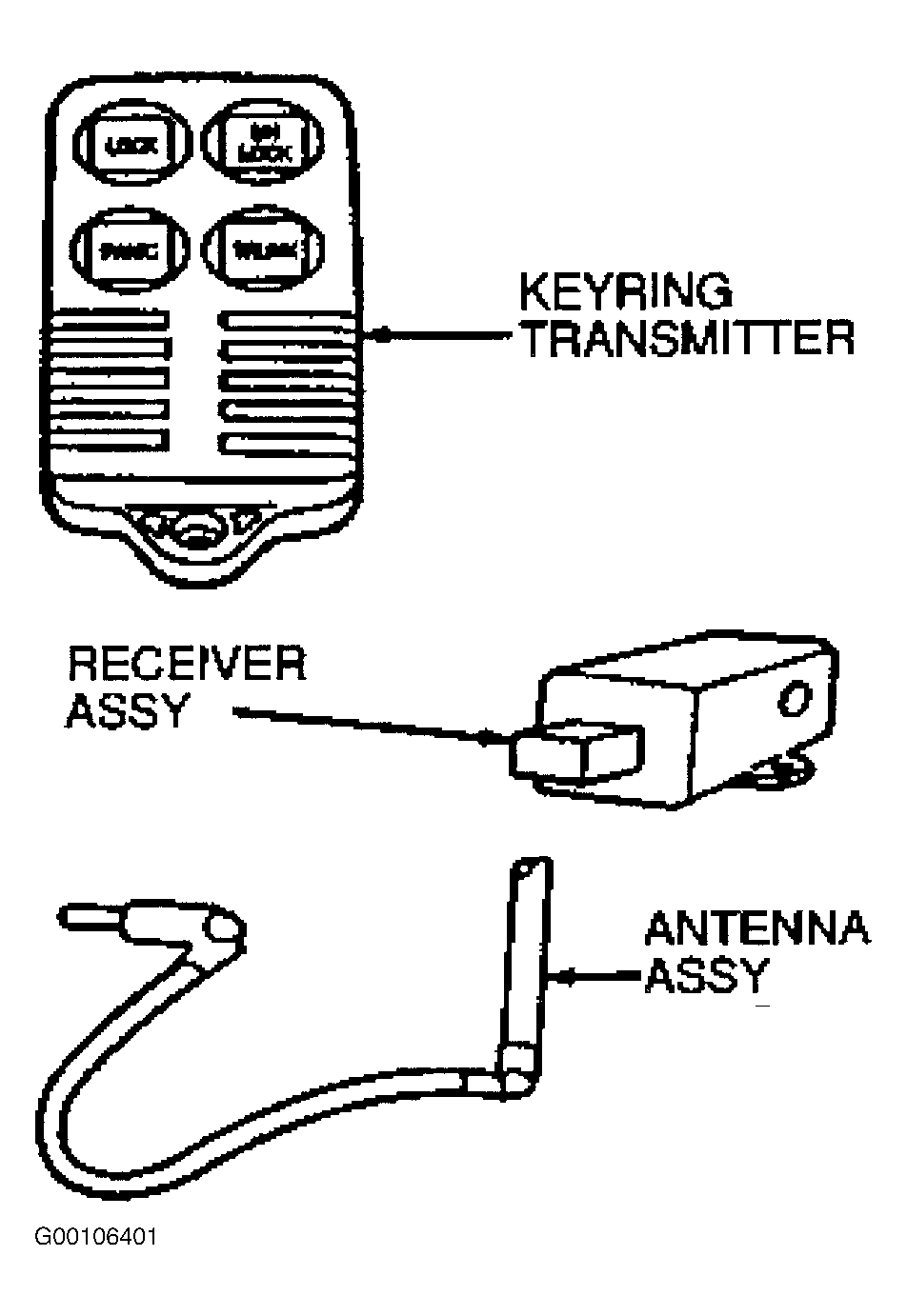

- The four button (hand-held) transmitter
The electronic control module performs the following functions:
- Unlocking Driver's Door
- Unlocking All Doors
- Unlocking Luggage Compartment
- Locking All Doors
- Automatic locking of all doors when the ignition switch is in the RUN position, someone is seated in the driver's seat, and the transmission is shifted through the REVERSE position.
- Arming and disarming, Anti-theft system, if equipped.
- Turning on interior lights, keypad and keyhole illumination after any button on the keypad is pushed or either front door handle is lifted.
- Turn on interior lights and keyhold illumination when using the transmitter.
- Activate and deactivate security feature which sounds horn and flashes exterior parking lights.
- Activates battery saver feature which removes power from convenience lights 45 minutes after last input to control module.
