Control Module: Removal

Disconnect battery ground cable.
Open luggage compartment deck lid.

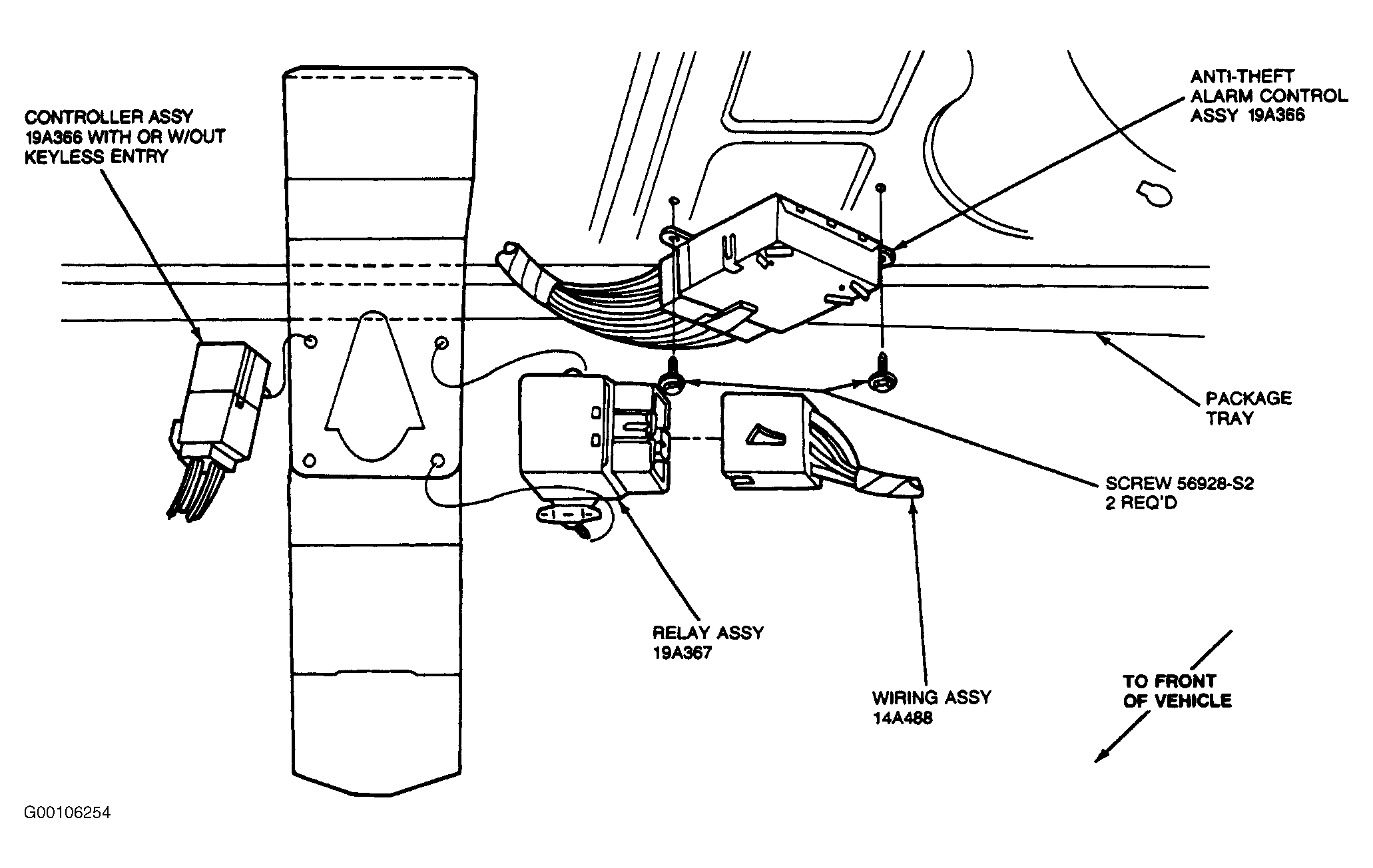

Remove two screws attaching module to package tray. See Figure . Remove control module.
Disconnect electrical connectors from control module.
