Component Tests: Switch

To test power seat switch, see illustration. See Fig 1 .

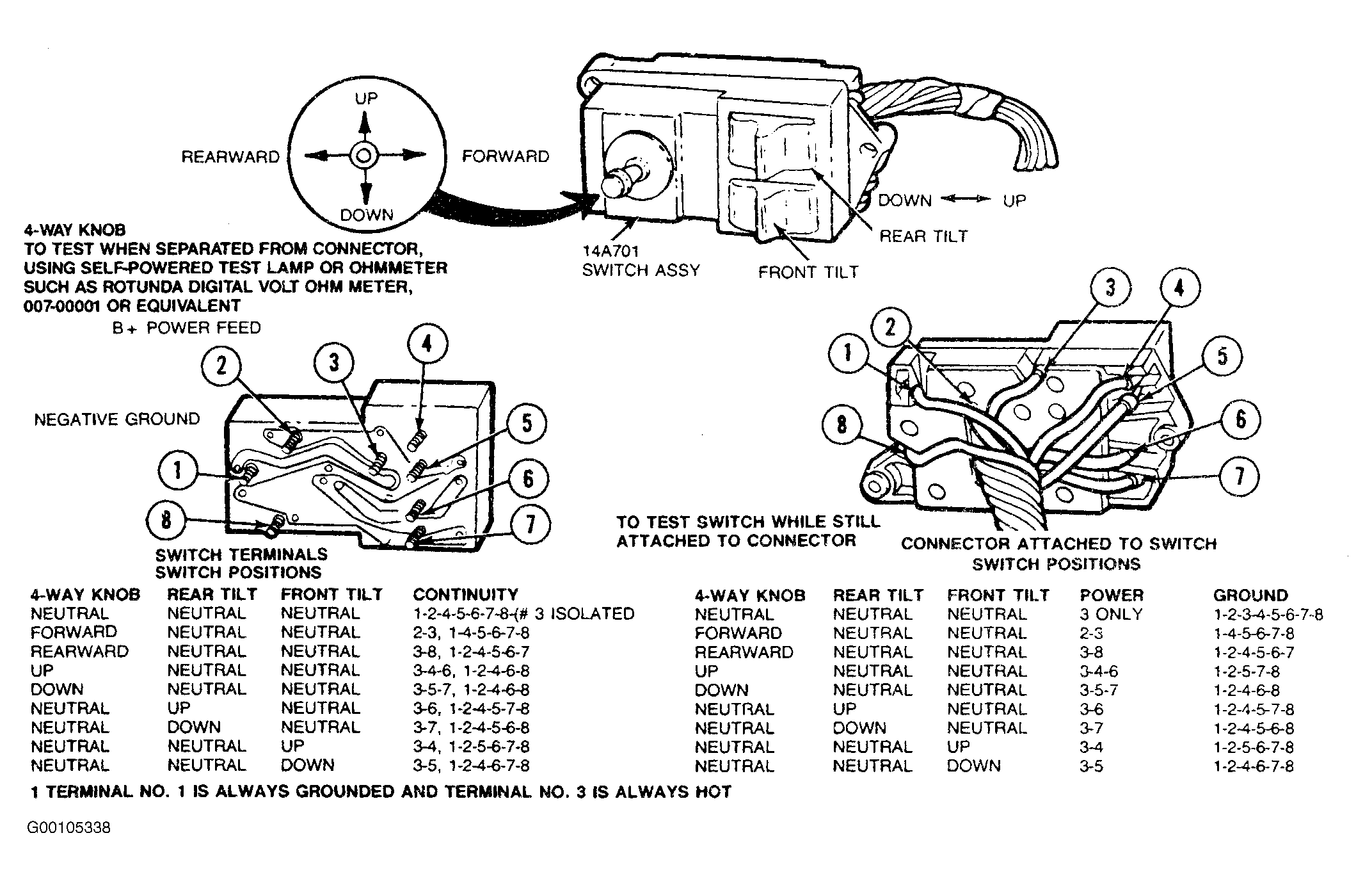

Fig 1: Power Seat Switch Test

G00105338

Courtesy of FORD MOTOR CO.
