Alternator & Regulator: Description

Major components of the alternator are a rotor, stator, rectifier assembly, and end housings. An external regulator controls alternator output. See Fig 1 and Fig 2 .

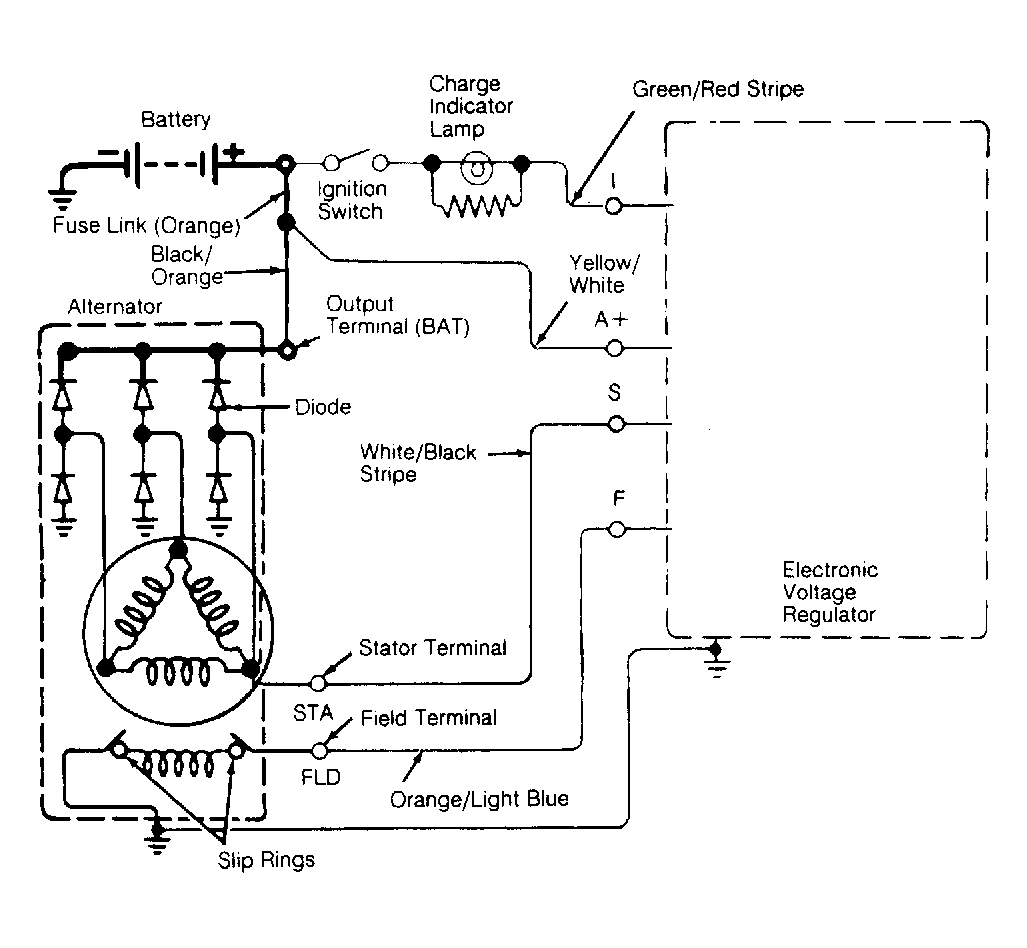

Fig 1: Charging System Wiring Diagram

Courtesy of FORD MOTOR CO.

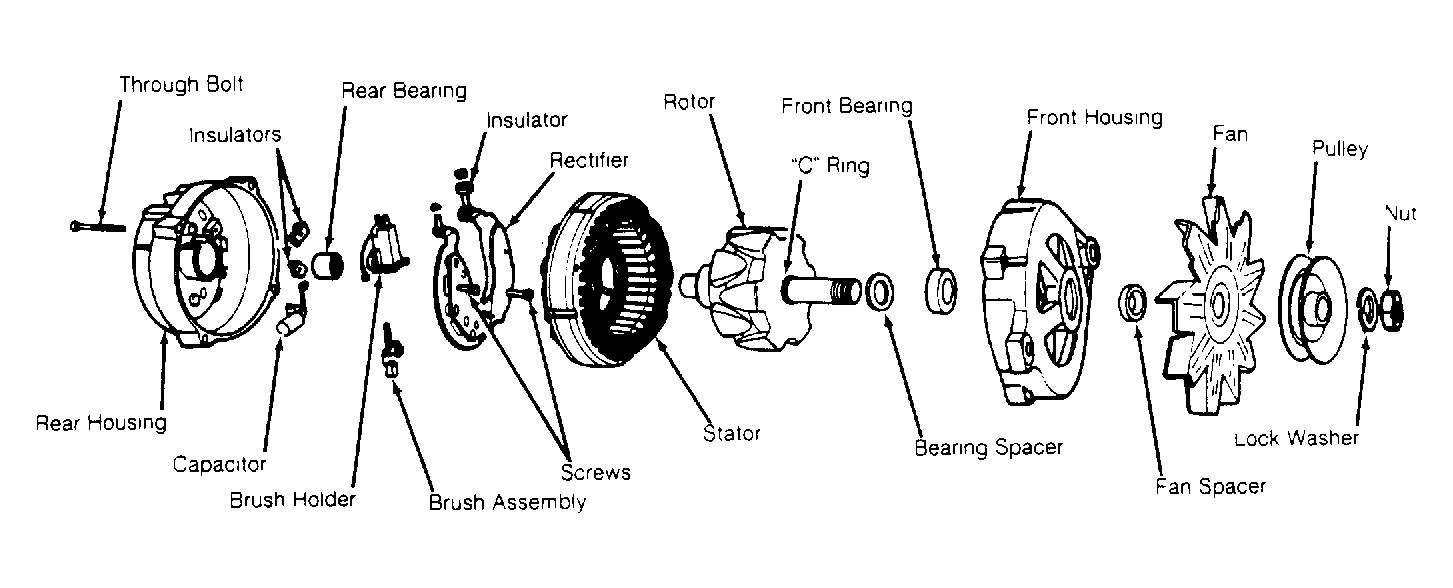

Fig 2: Exploded View of Alternator

Courtesy of FORD MOTOR CO.
