Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse Blocks | ||

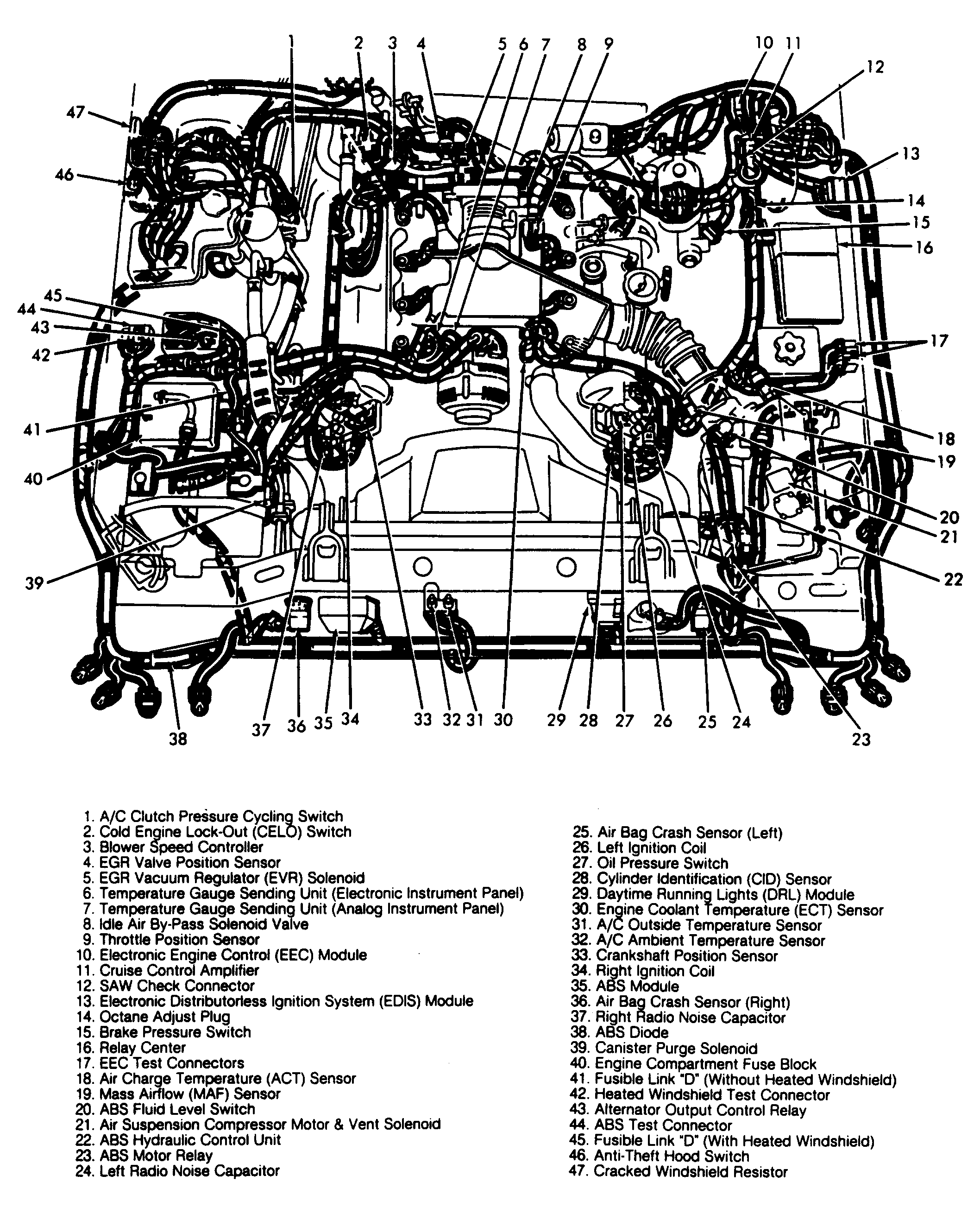

| Engine Compartment | To rear of battery. See Figure. | |

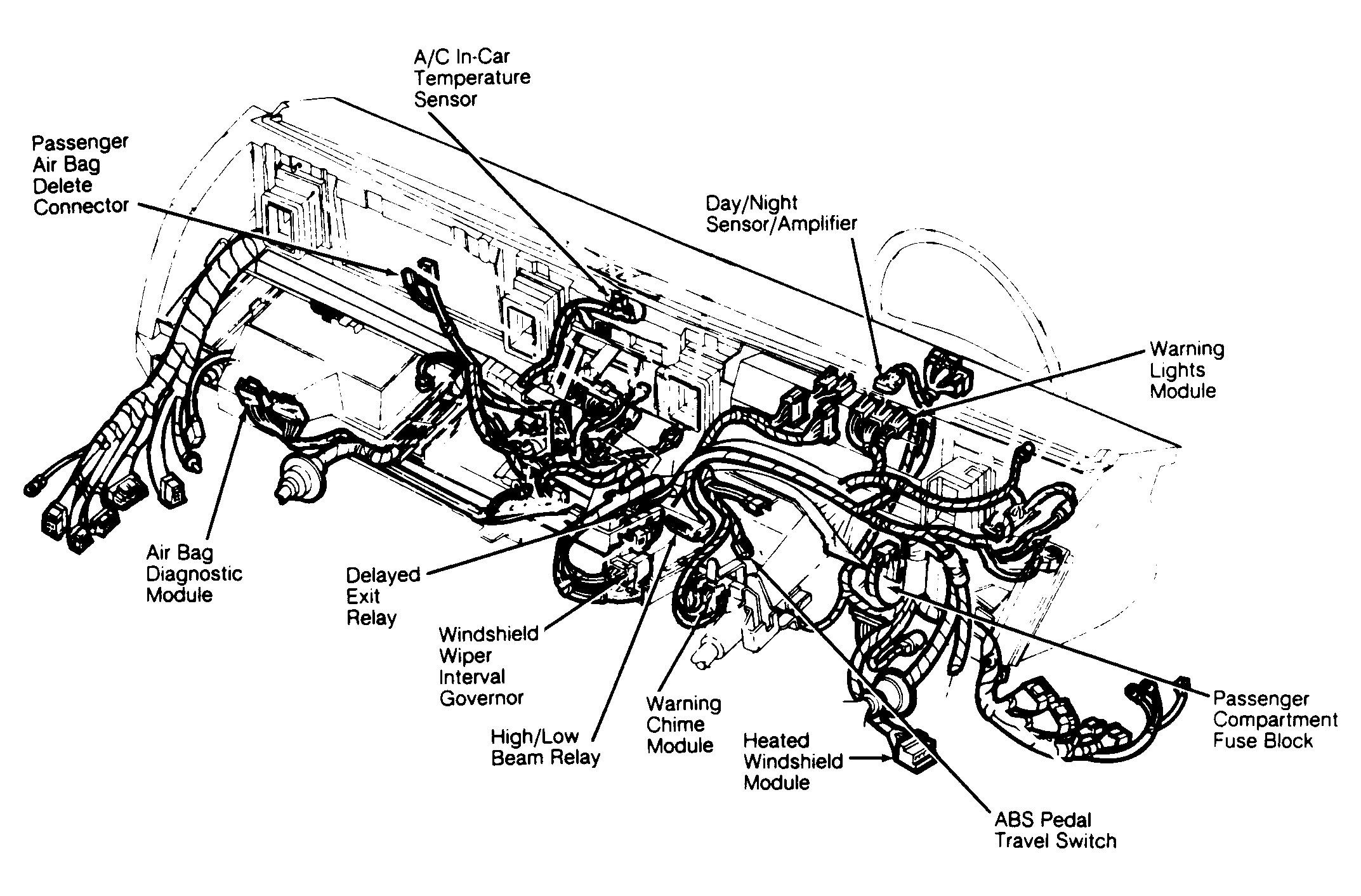

| Passenger Compartment | Behind left side of dash, to left of steering column. See Figure. | |
| Fusible Link "D" | ||
| With Heated Windshield | In engine bay, near alternator output control relay. See Figure. | |
| Without Heated Windshield | On right side of engine bay, near fuse block. See Figure. | |
| Relay Center | In engine bay, on top of left wheelwell. See Figure. | |
